- Fusion Optix® inside with SmartBeam® technology
- Declare listed and Red List Free materials
- 80/90/95+ CRI, 2200K-4000K CCT
- Static white, tunable white and dim-to-warm
- Available with BIOS and Sunlight LEDs
- 0-10V, DALI and DMX Dimming down to 0.1%
- Lutron and eldoLED drivers available
- UL listed, CSA 22.2 compliant
- RoHS compliance and lead free
- 5 Year, 50,000 hour standard warranty
Description

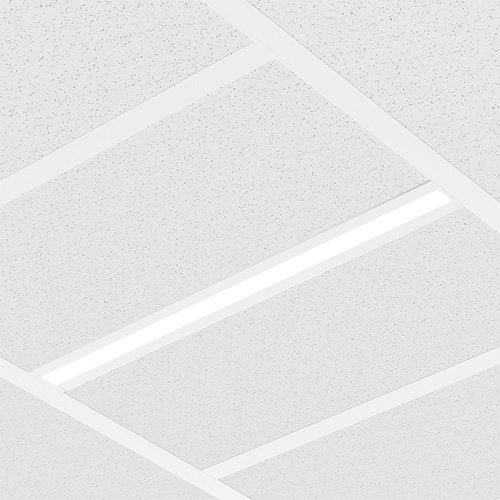

0.95” Compact Linear LED Recessed T-Bar Mounted Downlight
NANOSquare Recessed T-Bar is a 0.95” recessed slot LED linear light fixture designed for ceiling grid systems. NANOSquare T-Bar brings SmartBeam® capabilities to a 15/16″ wide aperture that perfectly complements a T-Bar-based architectural space. NANOSquare T-Bar is available in ready to fit standard lengths at 24″, 48″ and 96″. It also has mounting options for a range of ceiling systems and is also available in custom lengths and shapes. The NANOSquare T-Bar is designed to be specification-grade with high lumen per foot, high CRI, and circadian options.
Features & Benefits
Product Downloads
SmartBeam® - Photometrics & IES
Certifications & Specifications
Certifications
Declare, Red List Free, UL listed, CSA 22.2 compliant, RoHS compliant, and lead-free.
Sustainability
Every XICO product features SmartBeam® Technology, energy-efficient LED solutions, high efficacy optical systems, considered material choices, and thoughtful supply chain management.
Construction
Extruded, recycled aluminum housing. Both anodized and powder-coated extrusions are fully recyclable at end of life.
Optics
FlatLens® extruded acrylic optic provides excellent diffusion, high transmission, and no LED imaging. Acrylic optics are fully recyclable at end of life.
Finishes
All fixtures are available in clear anodized aluminum, white powder coat, or black powder coat. Any RAL color may be specified.
WHITE
RAL-9003
BLACK
RAL-9005
GRAY
RAL-7001
Clear Anodized Aluminum
CUSTOM RAL
CRI
High Efficiency 80+CRI, 90+C, High Definition 95+CRI, Full Spectrum Sunlight 97+CRI
CCT
2200K, 2700K, 3000K, 3500K, 4000K, 5000K
Fusion Optix® Inside
SmartBeam® LED engines & SmartOptics® optical assemblies are designed and manufactured in Massachusetts, allowing XICO to offer unique customizations in LED and optical capabilities.
Warranty
5 Year, 50,000 hour standard warranty
Technology and Manufacturing
XICO fixtures are engineered and manufactured in our Massachusetts factory with Fusion Optix® Inside. As LED engine and Optical system specialists XICO offers adjustment and customization to output, beam distribution, and color to meet the needs of your project.
Red List Free and Declare
XICO designs our products with green building standards in mind, supporting achieving LEED, WELL, and Living Building Challenge.
SmartBeam®
Find your beam distribution and compatible products. Learn more about use cases and discover related project studies.
