NANOSquare Pendant

NANO Series

Precision Light in Sub 1" Aperture

Description

Request Information

Product Code: NSQ95-P

0.95” Compact Linear LED

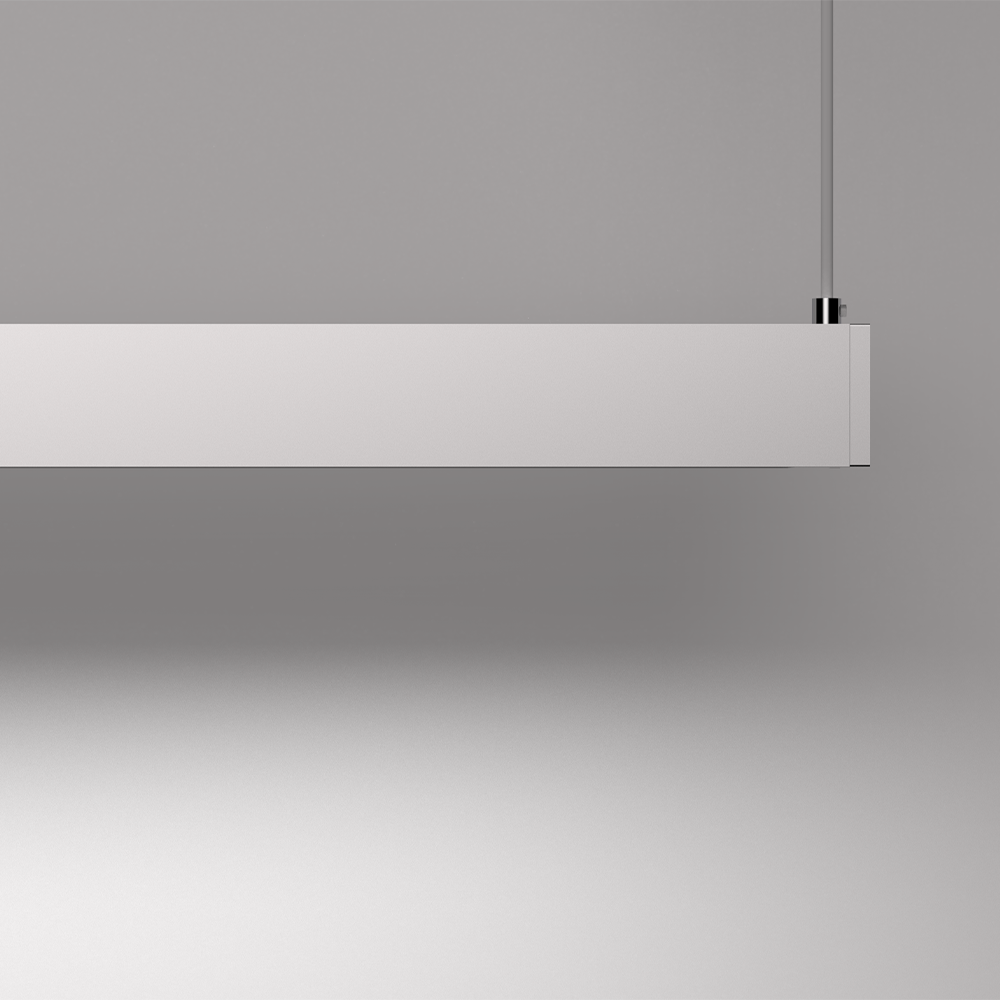

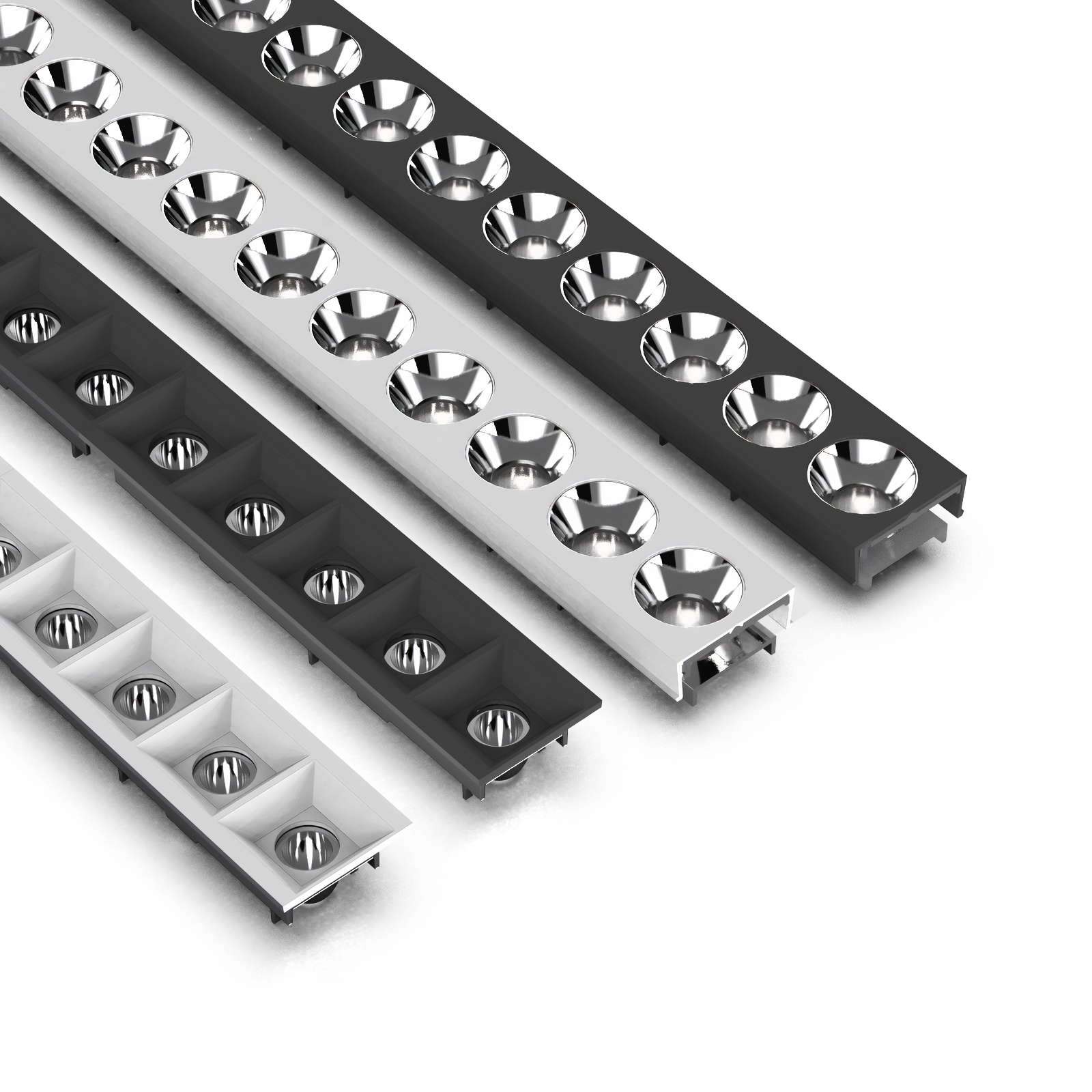

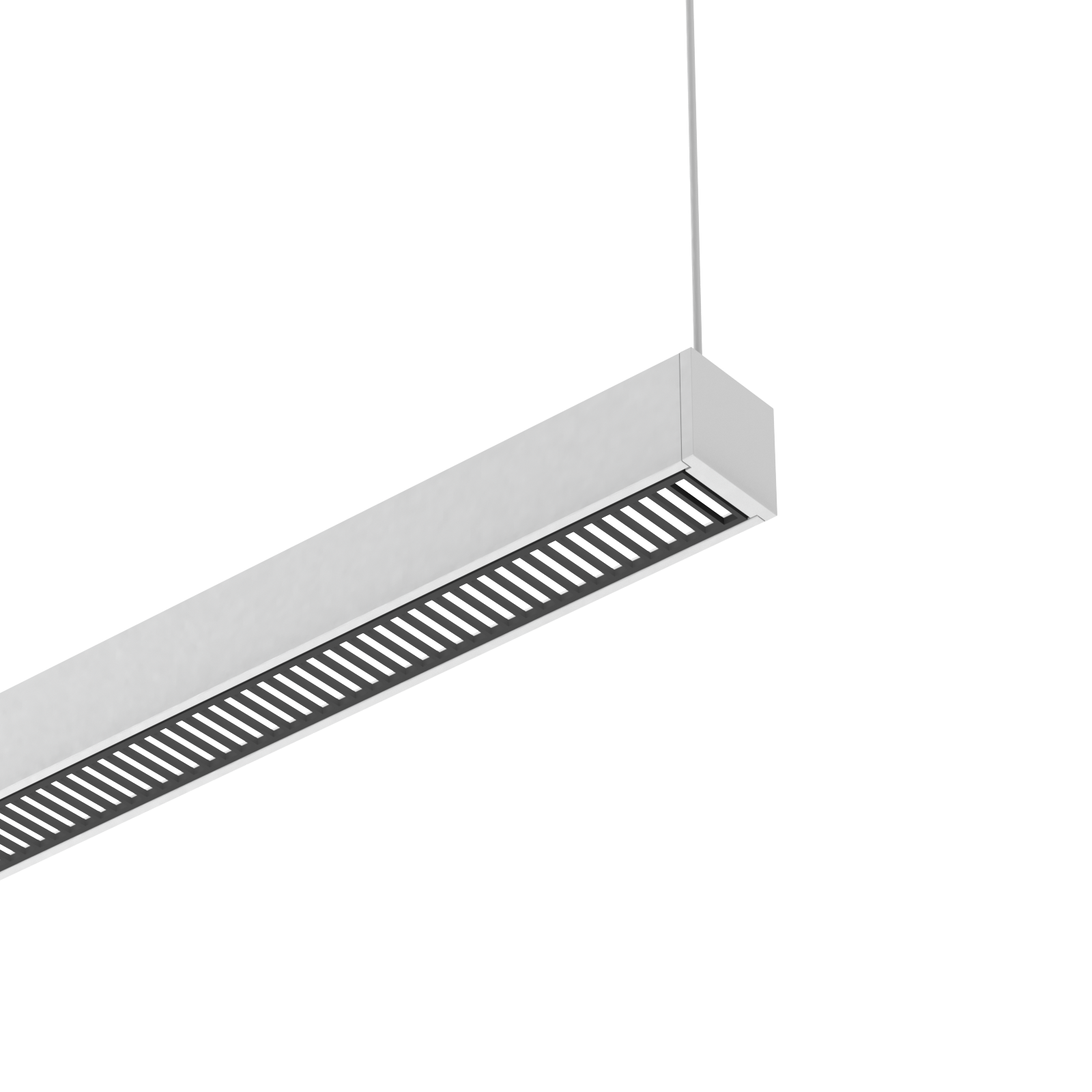

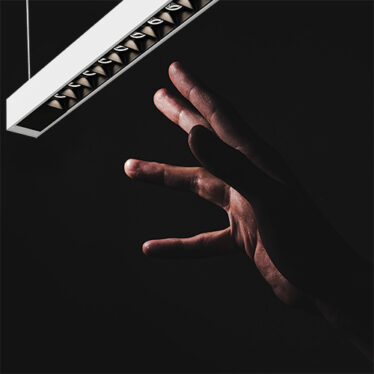

NANOSquare Pendant is a 0.95” square suspended LED linear light fixture, providing both direct (down) and indirect (up) lighting. NANOSquare Pendant delivers SmartBeam® capabilities to an ultrasmall graphic scale that complements architectural space. NANOSquare Pendant features a remote driver and “power over cable” technology to remove visual bulk. Unique Nano Cavity Optics (NCO) technology delivers pleasant low glare lighting with UGR of less than 19.

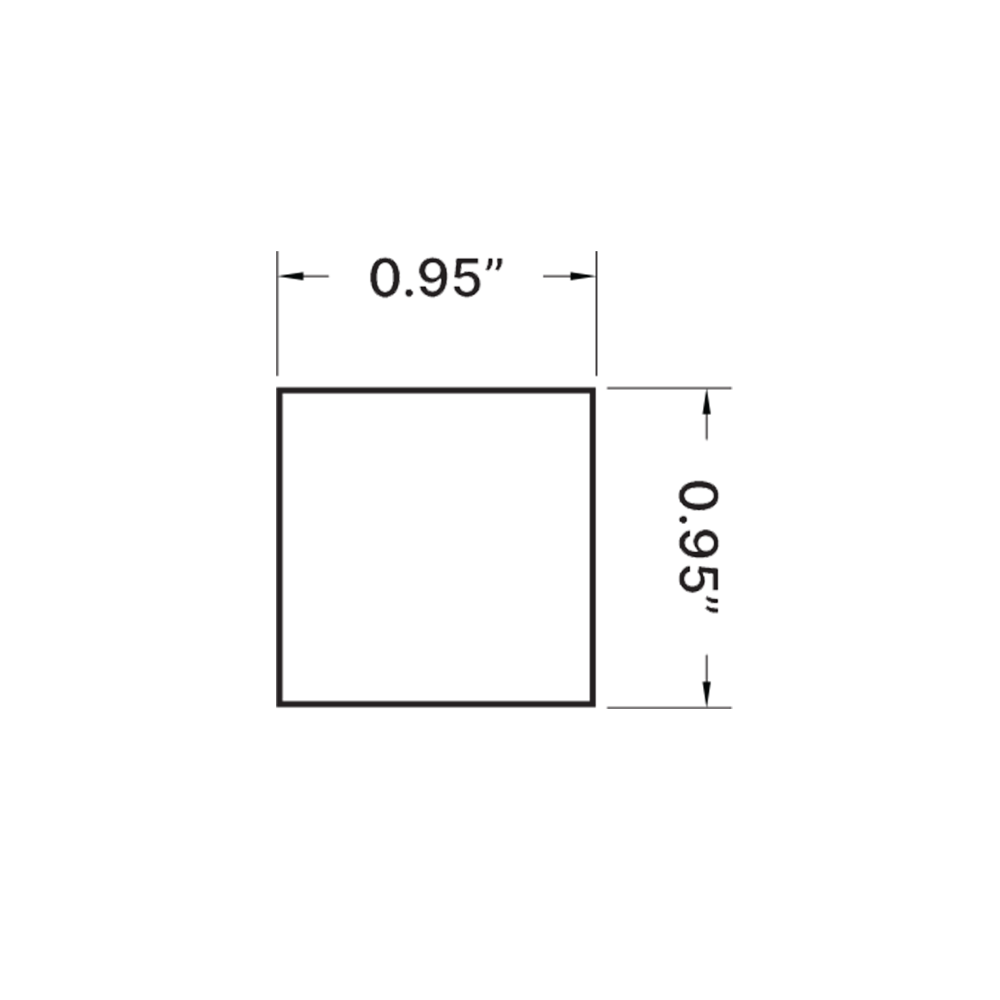

Fixture Dimensions: 0.95″ (W) x 0.95″ (H)

Features & Benefits

  • High performance, small form factor LED light

  • SmartBeam® technology by Fusion Optix®

  • Symmetric & asymmetric lighting distributions

  • Best-in-class efficiency for indirect and direct lighting

  • LED choices: >90 CRI, Sunlight and RGB/RGBW

  • White LED color fidelity of 2.5 Step MacAdam ellipse

  • 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm

  • Choice of factory selected, Lutron or Eldoled drivers

  • Controls include; Lutron, Cooper, Casambi

  • Choice of powder coated and anodized finishes

Certifications

  • Declare listed and Red List Free

  • RoHS Compliant

  • Designed & Built in Boston MA

  • BABAA Compliance (Read Statement)

  • BIOS Certified Partner

  • UL/ETL Listed

  • 5-Year Factory Warranty

Files & Downloads

Specification Guide

Static White

Photometrics

IES Files

Design & Install

Installation Instructions

Revit Files

Tech Drawings

Sustainability

Declare Label

BABAA Compliance

SmartBeam® Choices

Direct

Indirect

Technical Specifications

Dimensions

Mounting Style

Mounting Types

Mounting Brackets

Standard Lengths

Finish

End Cap Styles

Canopy Options

Housing Material

Warranty

Sustainability

0.95″ x 0.95″

Pendant

Drywall and T-Bar

Sheet Metal

2ft, 4ft, 6ft, 8ft, 10ft

Powder Coated & Anodized

Flat, Square and Round

Square and Round

Extruded, Recycled Aluminum

5-Year Warranty

Declare Listed and Red List Free

LED Performance

LED Choices

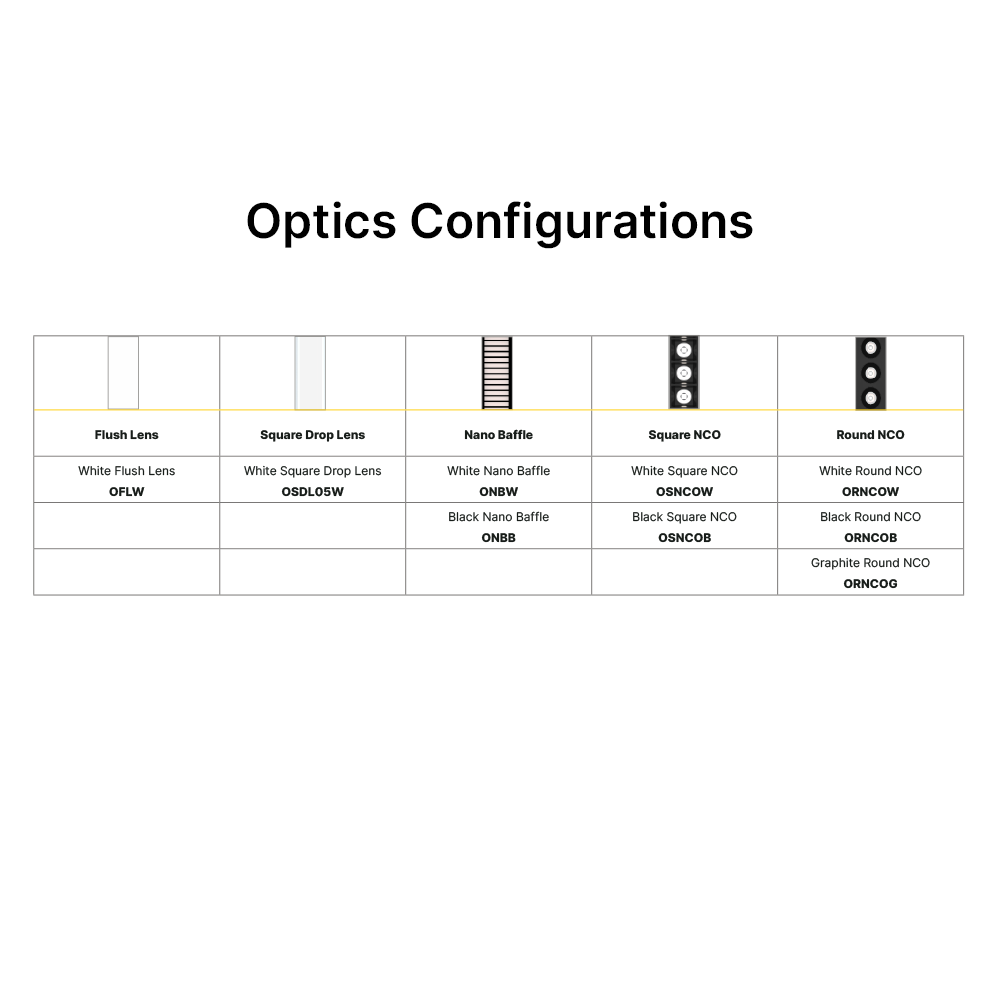

Optics Choices

CRI

CCT

Lighting Configurations

Voltage

Driver Options

Emergency Backup

Compatible Controls Options

Power Cord

Channel

Up to 1,000 Lm/Ft, 135 Lm/W Efficacy

Static, Tunable, White, & Dim-to-Warm

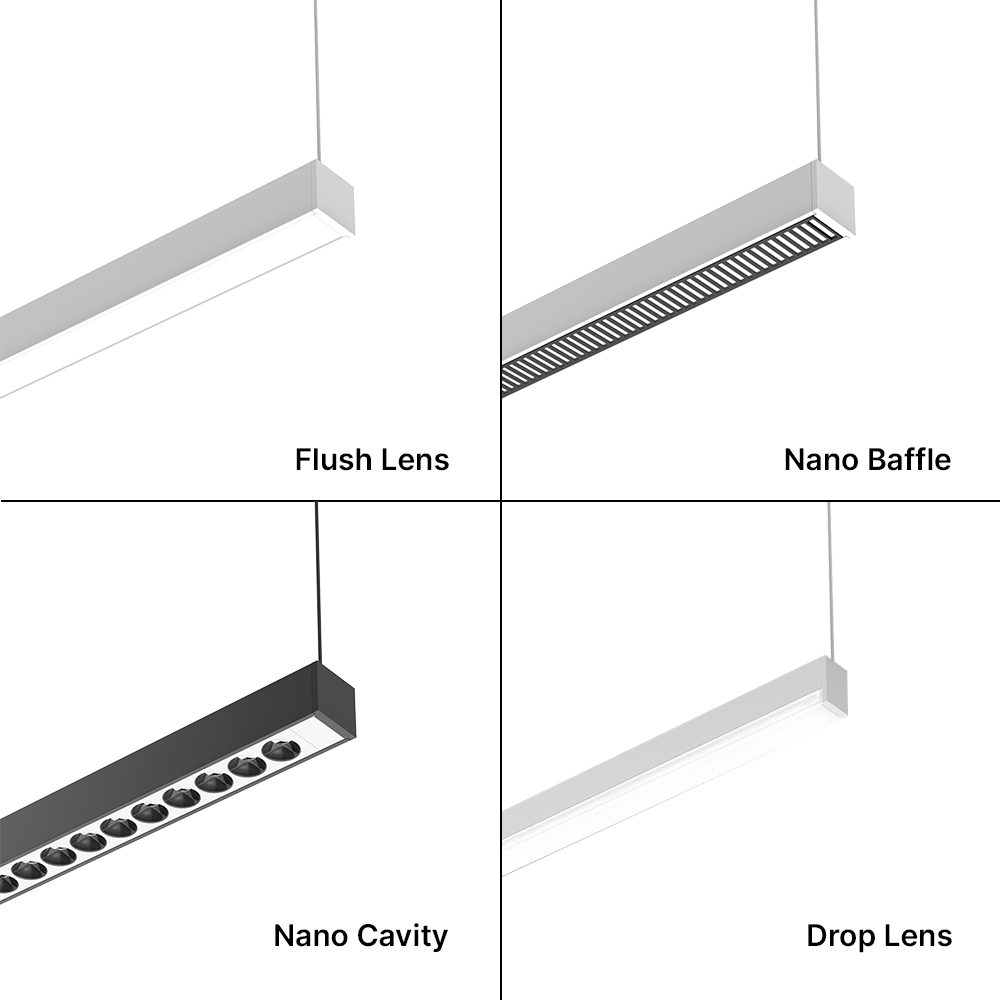

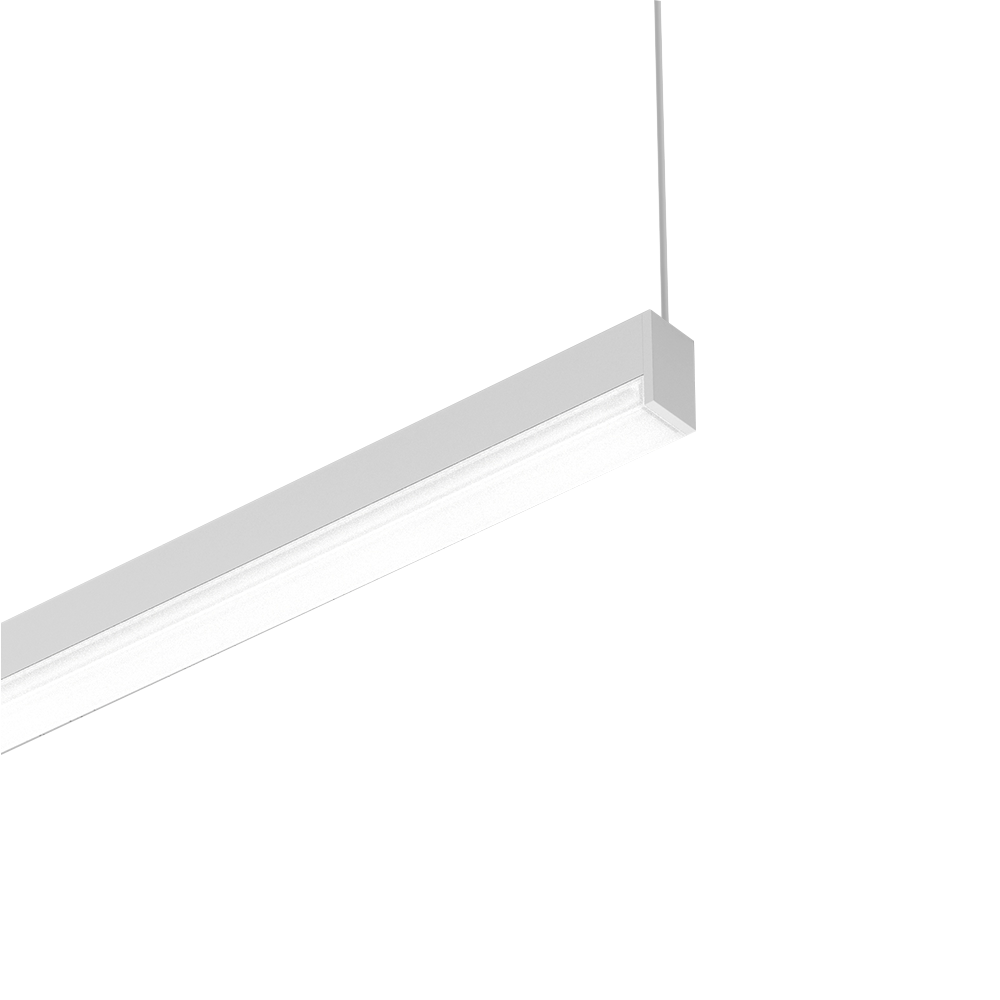

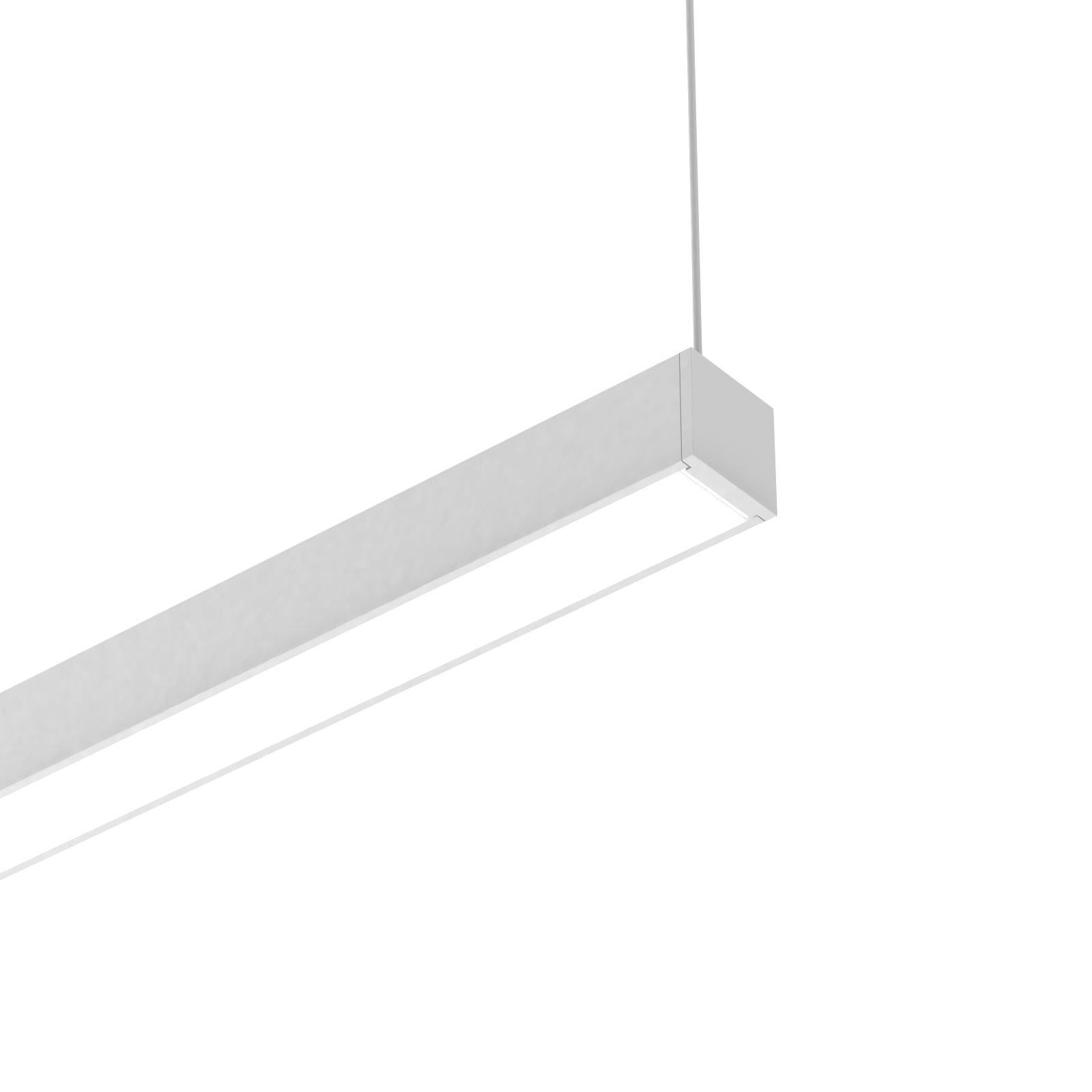

Flush, Nano Baffle, Drop & NCO

80/90/95+

2200K to 5000K

Direct, Indirect, & Direct/Indirect

120-277 VAC and 347 VAC, 50/60 Hz

Factory, Lutron & eldoLED

Emergency Circuit & Emergency Battery

Lutron, Casambi & Cooper

48″ and 96″

Bi-Directional 1-Channel & Bi-Directional 2-Channel

Gallery

Sustainability

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

NANO Series Declare Listing

Standards & Certifications

Driver & Lighting Controls Options

Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
