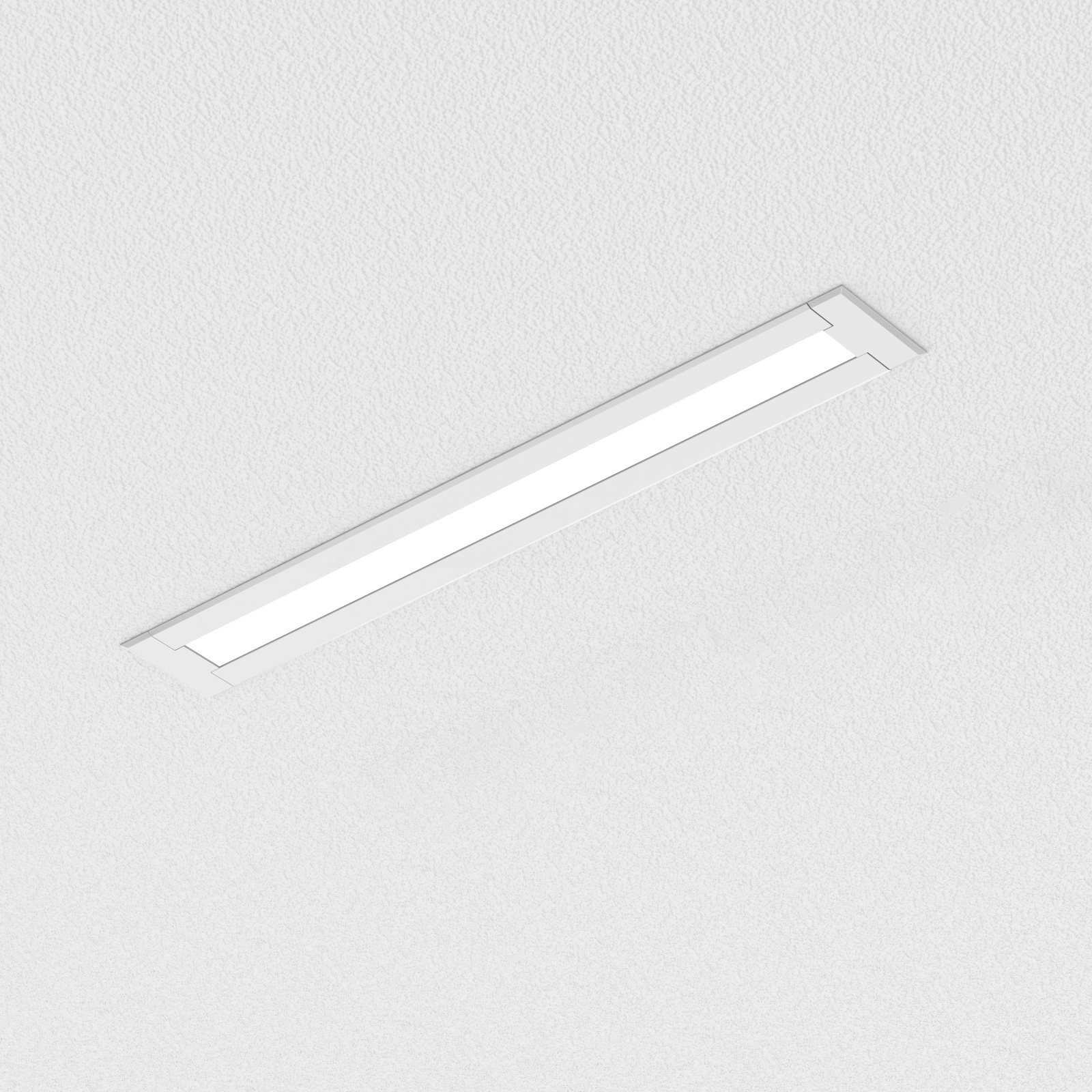

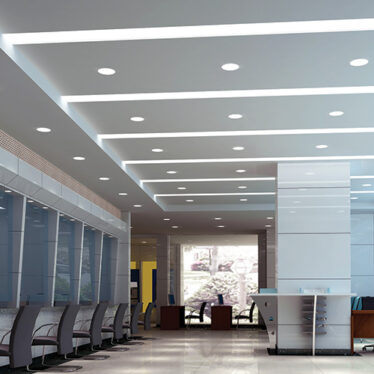

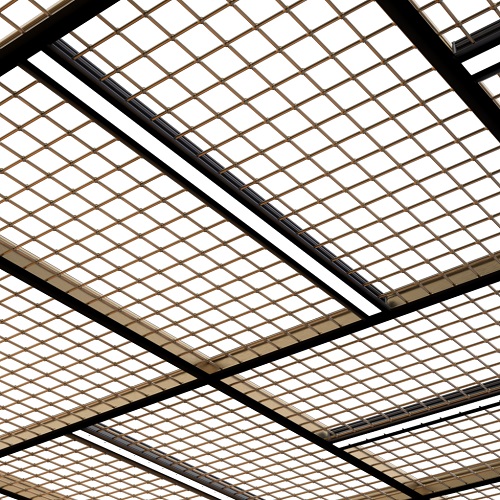

NANOSlot is 0.95” recessed slot LED linear light fixture, bringing SmartBeam® capabilities to a graphic scale that complements architectural space. NANOSlot has drywall and custom configuration mounting options for ceiling systems. The NANOSlot range is designed to be specification-grade with high lumen per foot, high CRI, and circadian options.

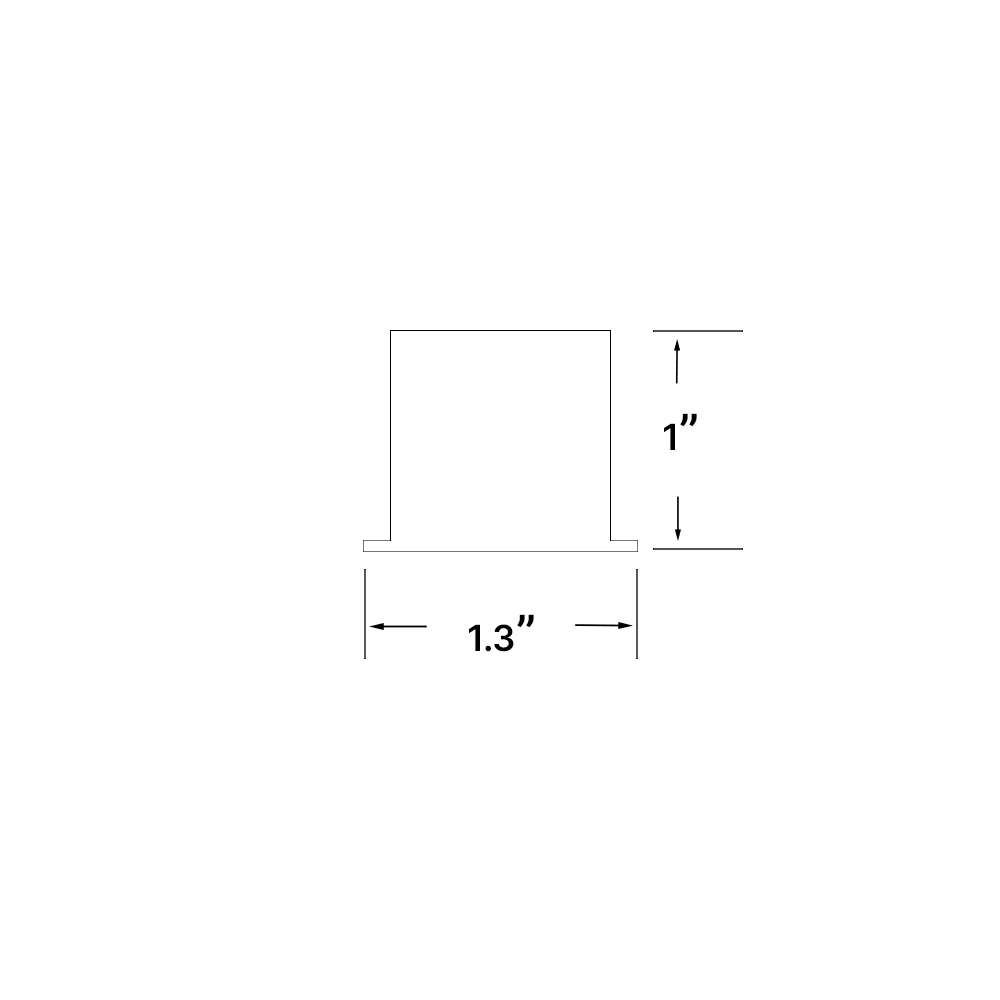

Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
Housing Material
Warranty
Sustainability
1.5″ x 1.5″
Recessed
Drywall
Sheet Metal
2ft, 4ft, 6ft, 8ft, 10ft
Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices

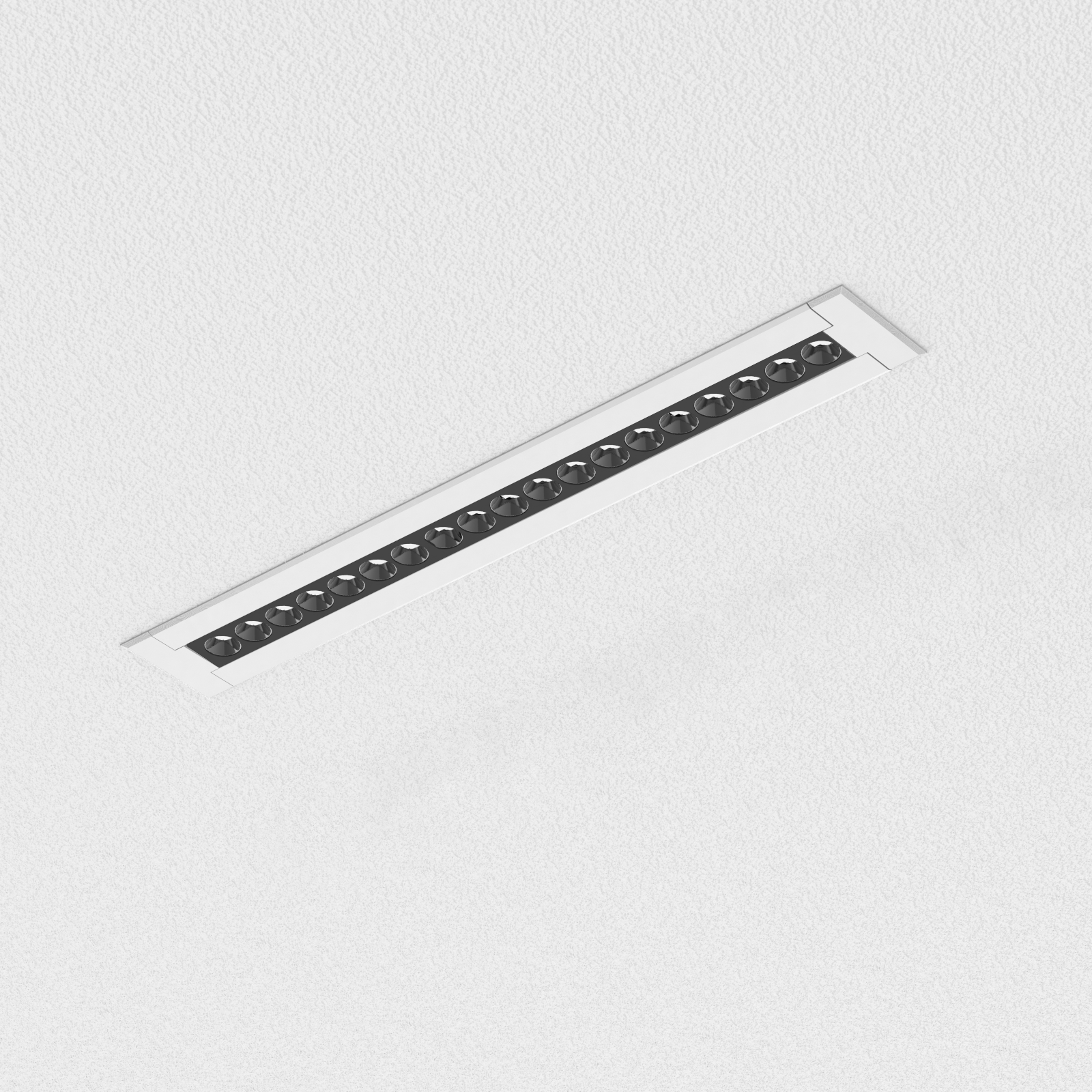

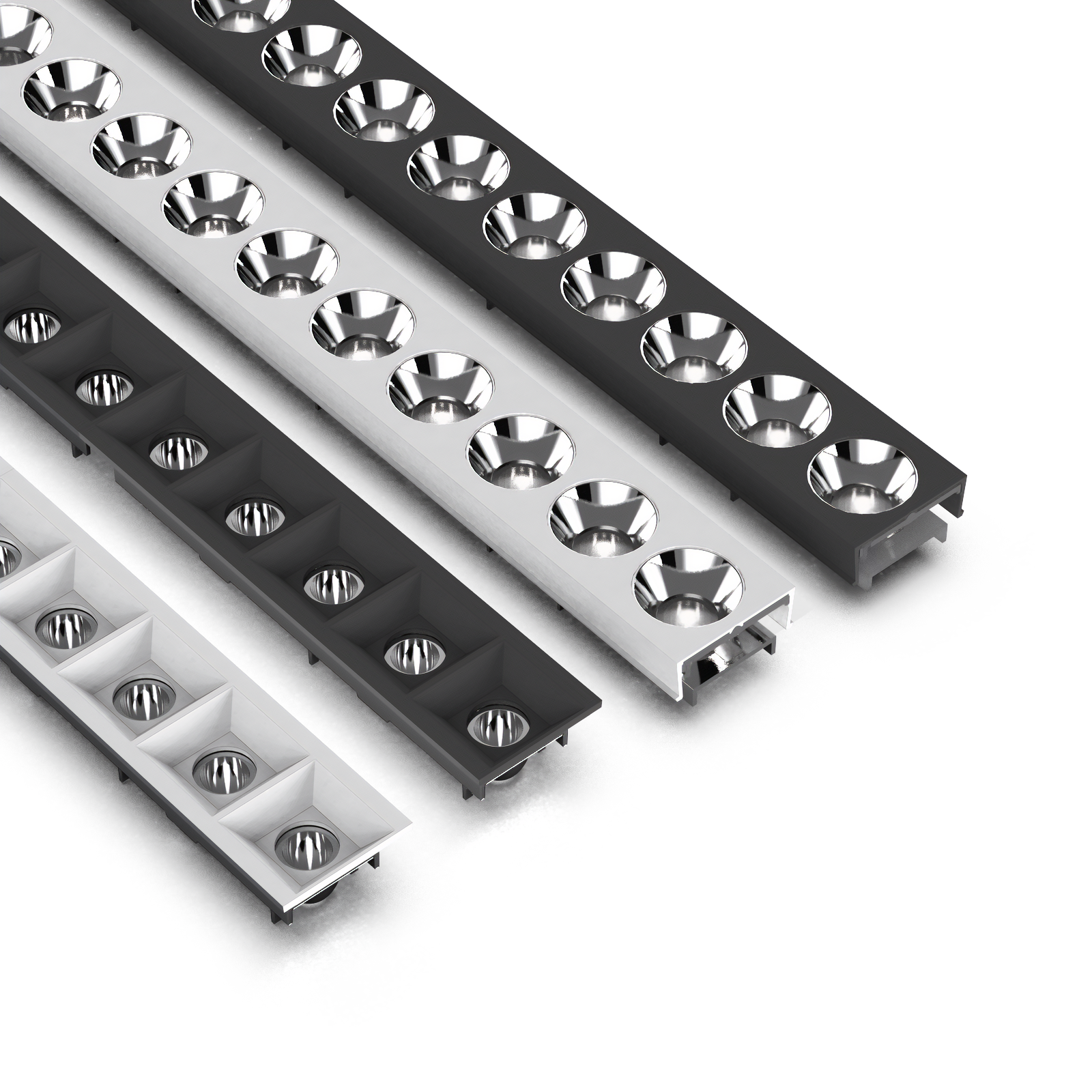

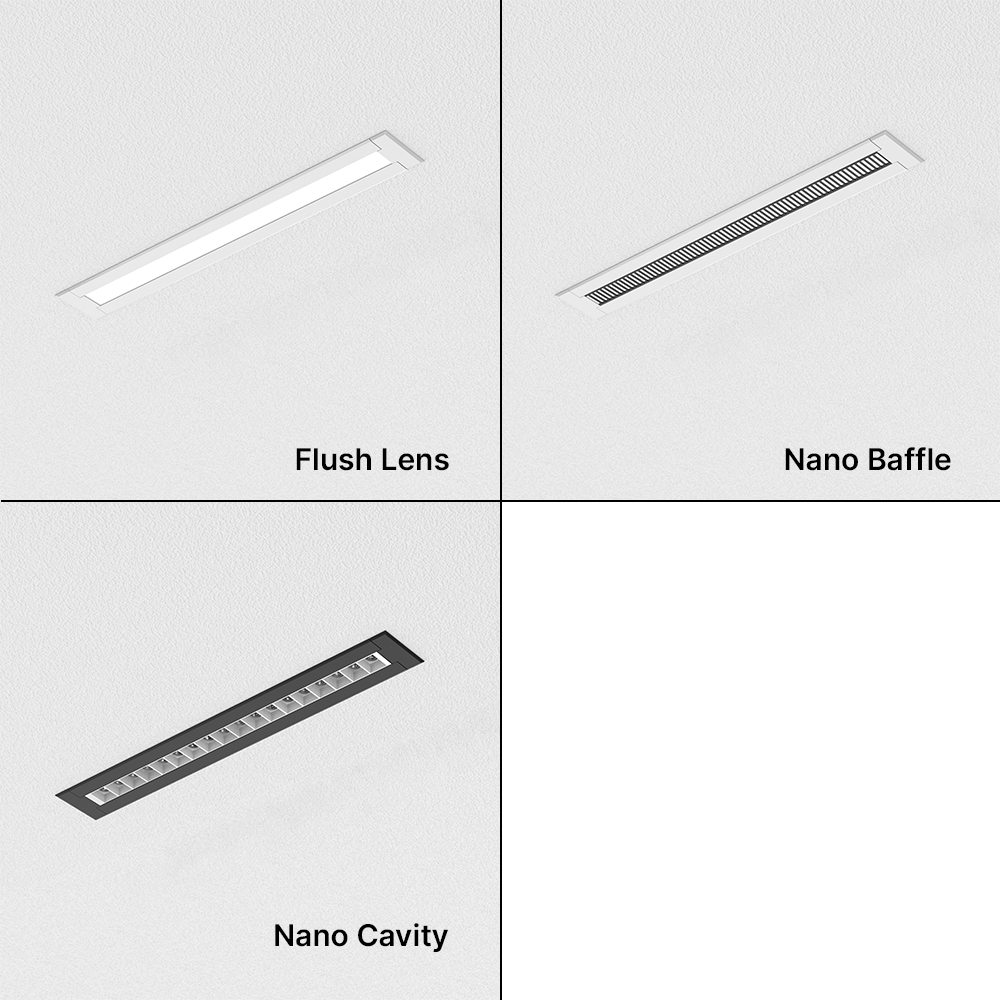

Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Power Cord
Up to 1,000 Lm/Ft, 135 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm

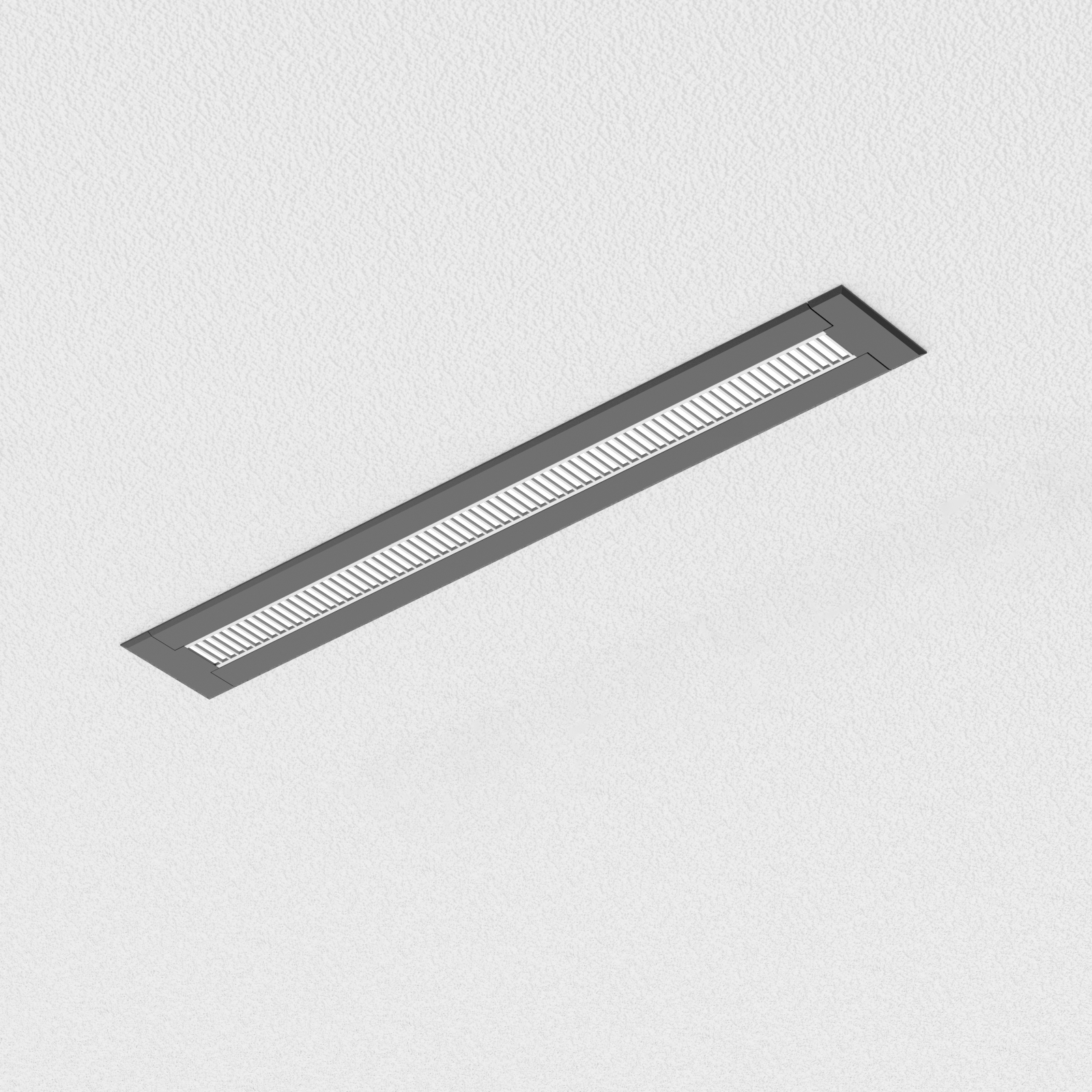

Flush, Nano Baffle, & NCO
80/90/95+
2200K to 5000K
Direct Only
120-277 VAC and 347 VAC, 50/60 Hz
Factory, Lutron & eldoLED
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
24″
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
