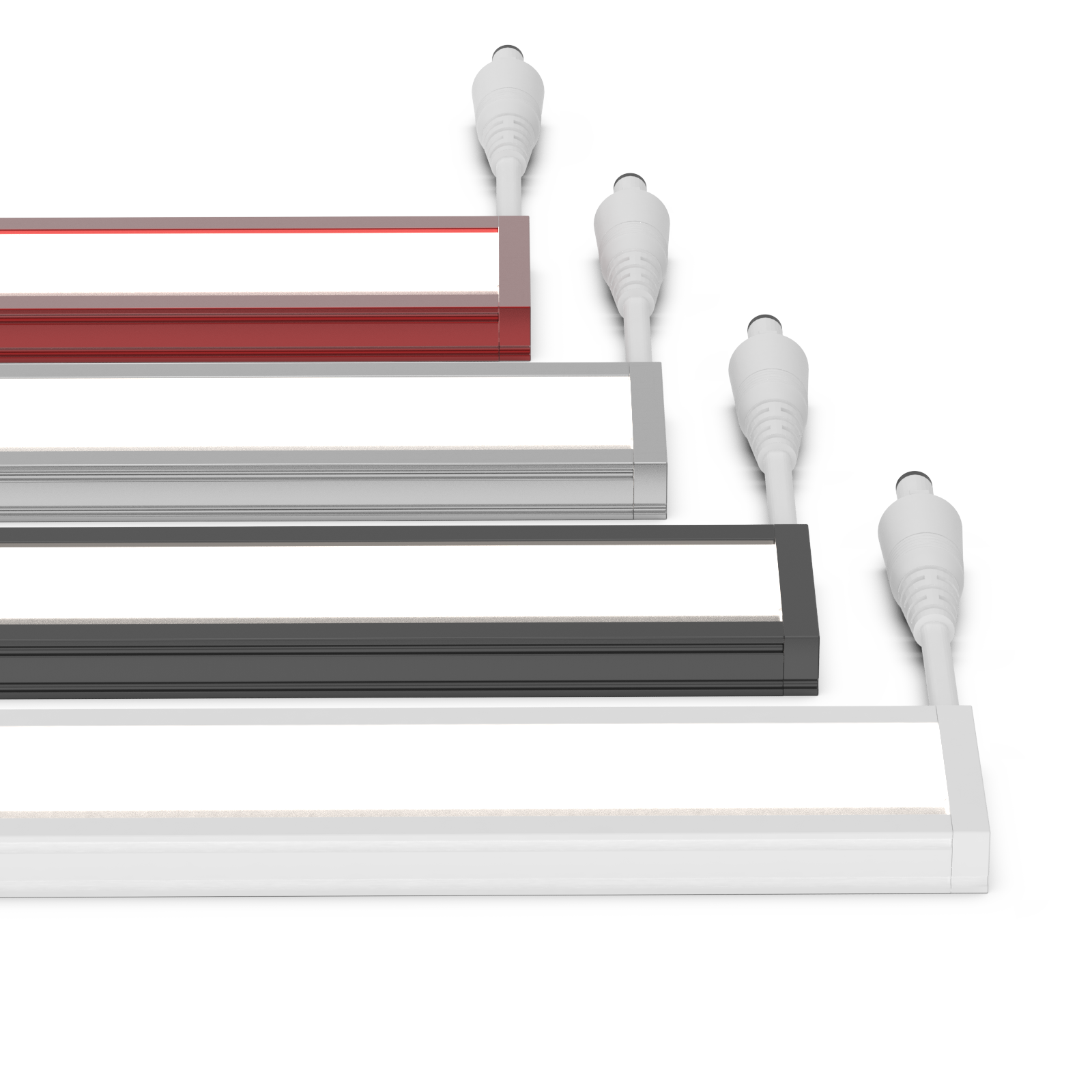

The NANORail is the industry’s smallest linear, high performance and slim indirect luminaire for cove, undercabinet and hidden accent lighting. NANORail is based on patented Cosine optics and Flatlens technology and provides a choice of lambertian, symmetric and asymmetric light distributions with an overall optical efficiency of over 90%. At less than 1″ wide and 3/8″ tall, the NANORail is an ultra-compact, low profile surface mount LED rail providing a range of lumen outputs up to 1000 lumens per foot, a range of color temperature, and 2.5 step macadam ellipse color quality. NANORail can also be provided with dim-to-warm and tunable white options and can be controlled by either 0-10V or TRIAC dimming.

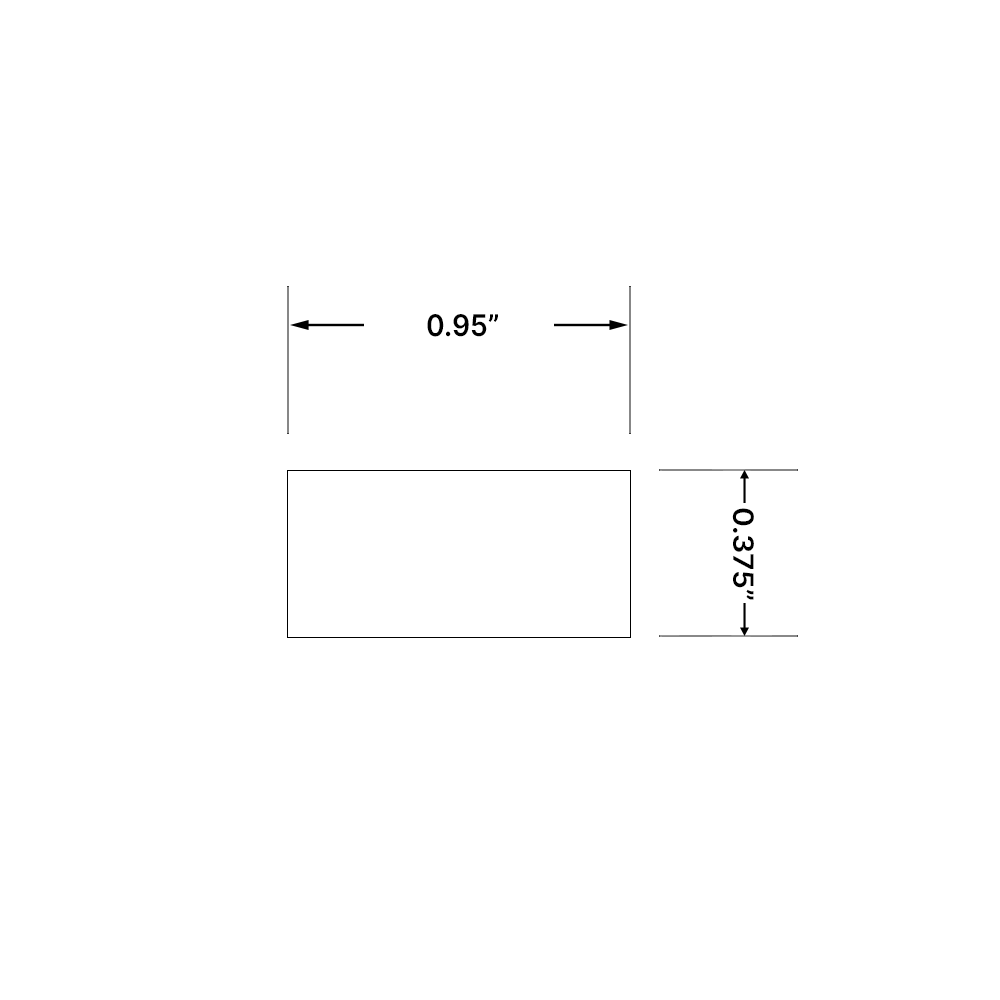

Fixture Dimensions: 0.95″ (W) x 0.375″ (H)
Dimensions
Mounting Style
Mounting Types

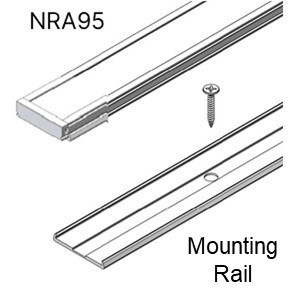

Mounting Brackets
Standard Lengths
Finish
Housing Material
Warranty
Sustainability
0.95″ x 0.375″
Surface
Surface Mount
Sheet Metal
1ft, 2ft, 3ft, 4ft
Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices
Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Up to 1,000 Lm/Ft, 150 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm
Flat, Cosine, Dome Lens Optics
80/90/95+
2200K to 5000K
Direct Only
120-277 VAC and 347 VAC, 50/60 Hz
Factory, Lutron & eldoLED
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
