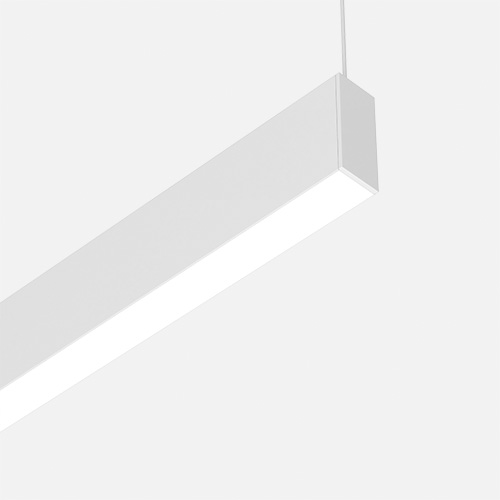

MICROBeam Pendant

MICRO Series

High Performance, Sub 1.5" Form Factor

Description

Product Code: MBE140-P

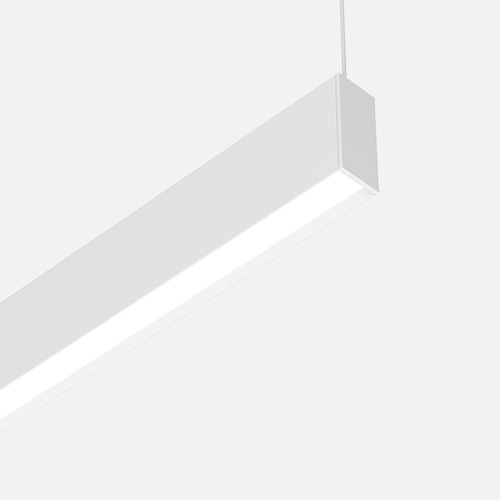

1.4″ Low-Profile Linear LED Pendant Mount

MICROBeam Pendant is a 1.4” linear for suspension mounting with an integral, field serviceable, on-board driver. MICROBeam Pendant brings SmartBeam® capabilities up to a powerful 2000 lumens per foot combined direct and indirect. It’s small size designed to compliment architectural space. MICROBeam Pendant is fully field serviceable and can be supplied in continuous runs and a variety of visually appealing shapes.

Features & Benefits

High performance, small form factor LED light
SmartBeam® technology by Fusion Optix®
Symmetric & asymmetric lighting distributions
Best-in-class efficiency for indirect and direct lighting
LED choices: >90 CRI, Sunlight and RGB/RGBW
White LED color fidelity of 2.5 Step MacAdam ellipse
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi
Choice of powder coated and anodized finishes

Certifications

UL/ETL Listed
Declare listed and Red List Free

RoHS Compliant
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
BIOS Certified Partner
5-Year Factory Warranty

Files & Downloads

Revit Files

Tech Drawings

Sustainability

Declare Label

BABAA Compliance

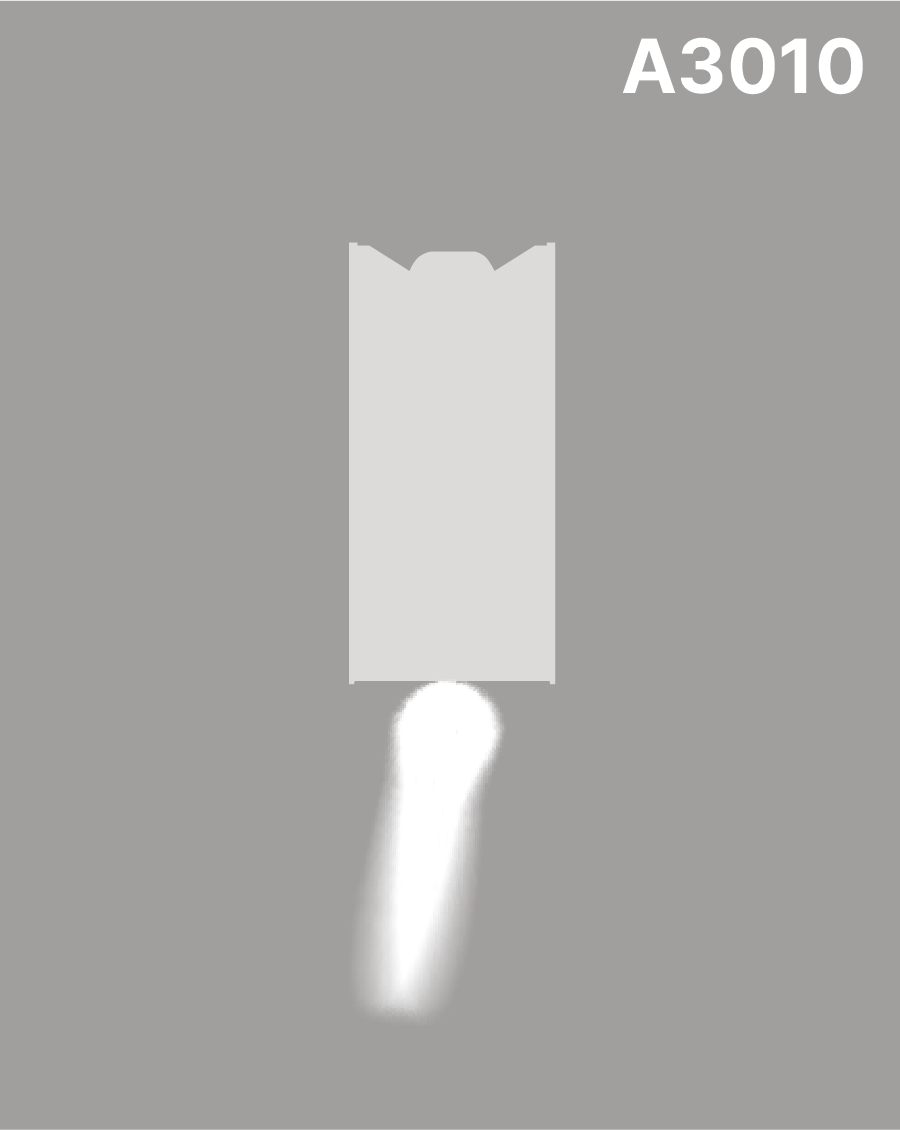

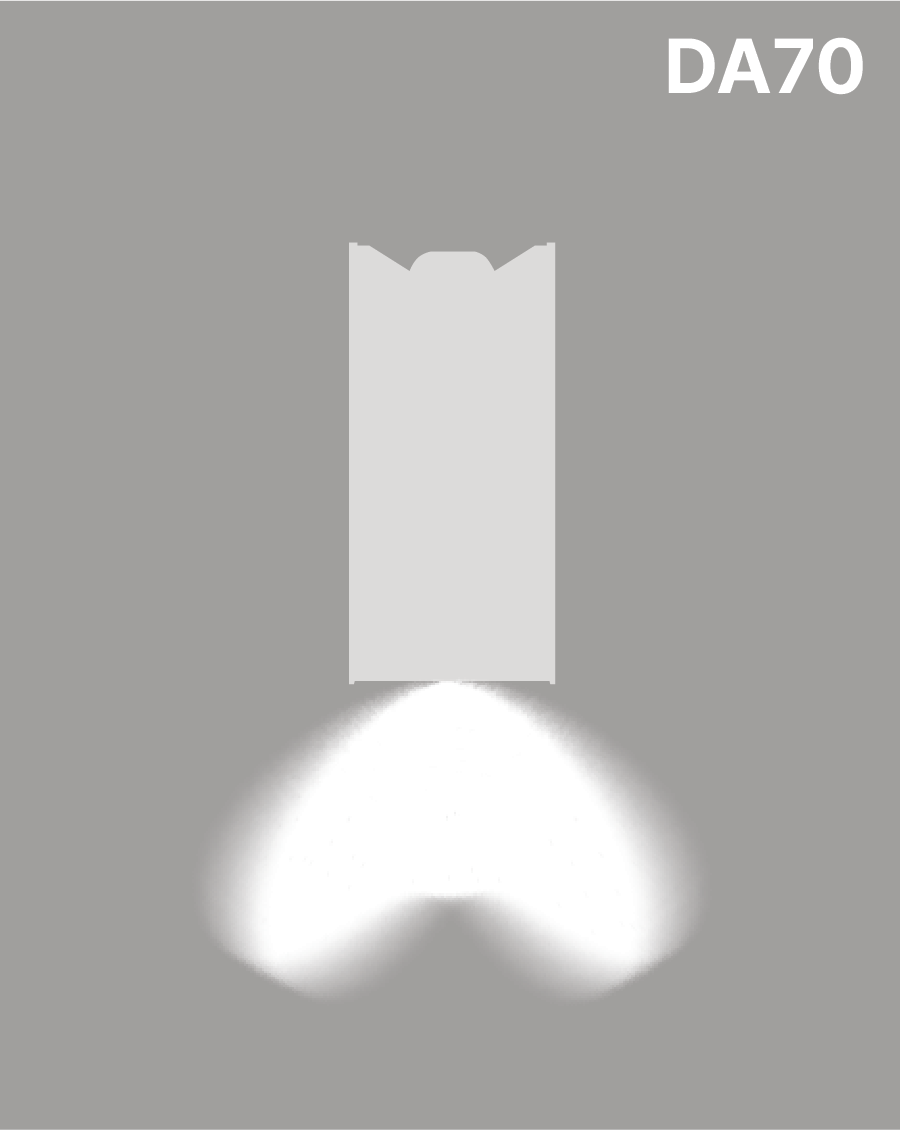

SmartBeam® Choices

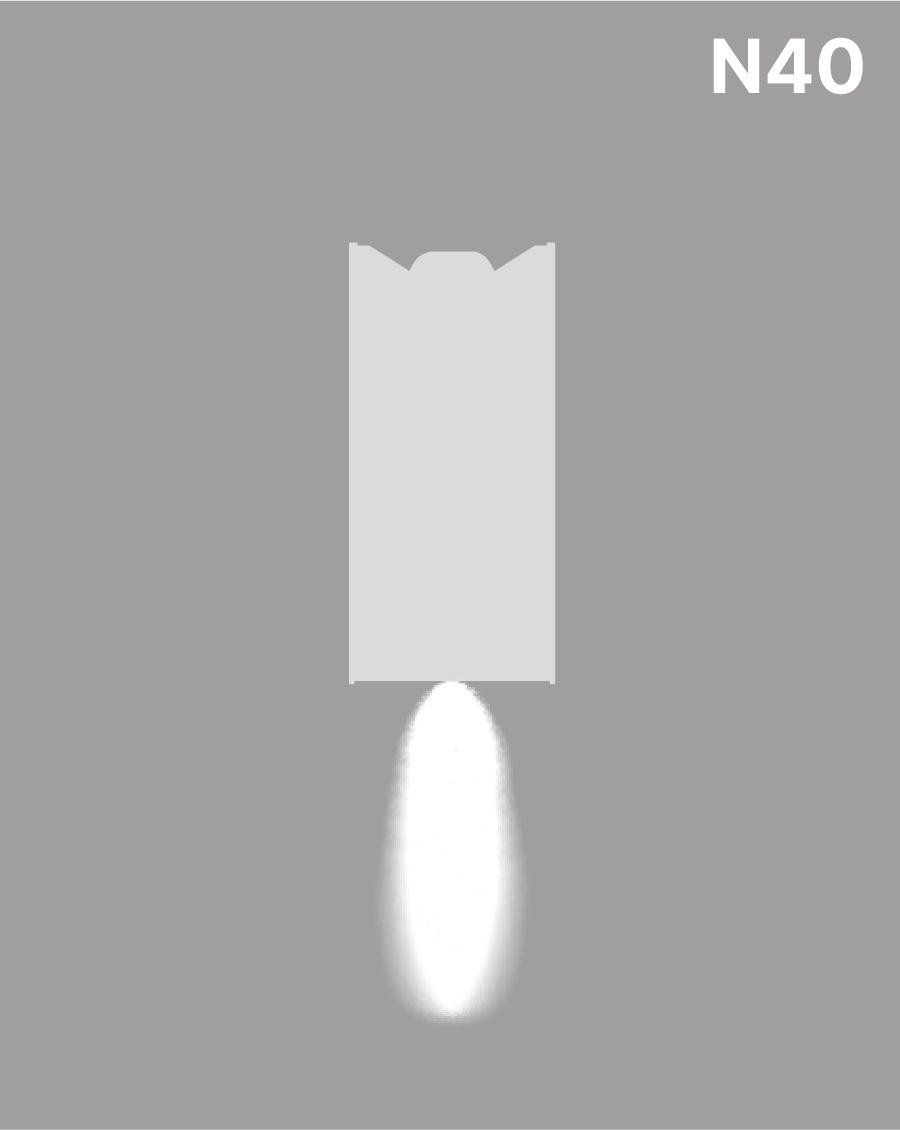

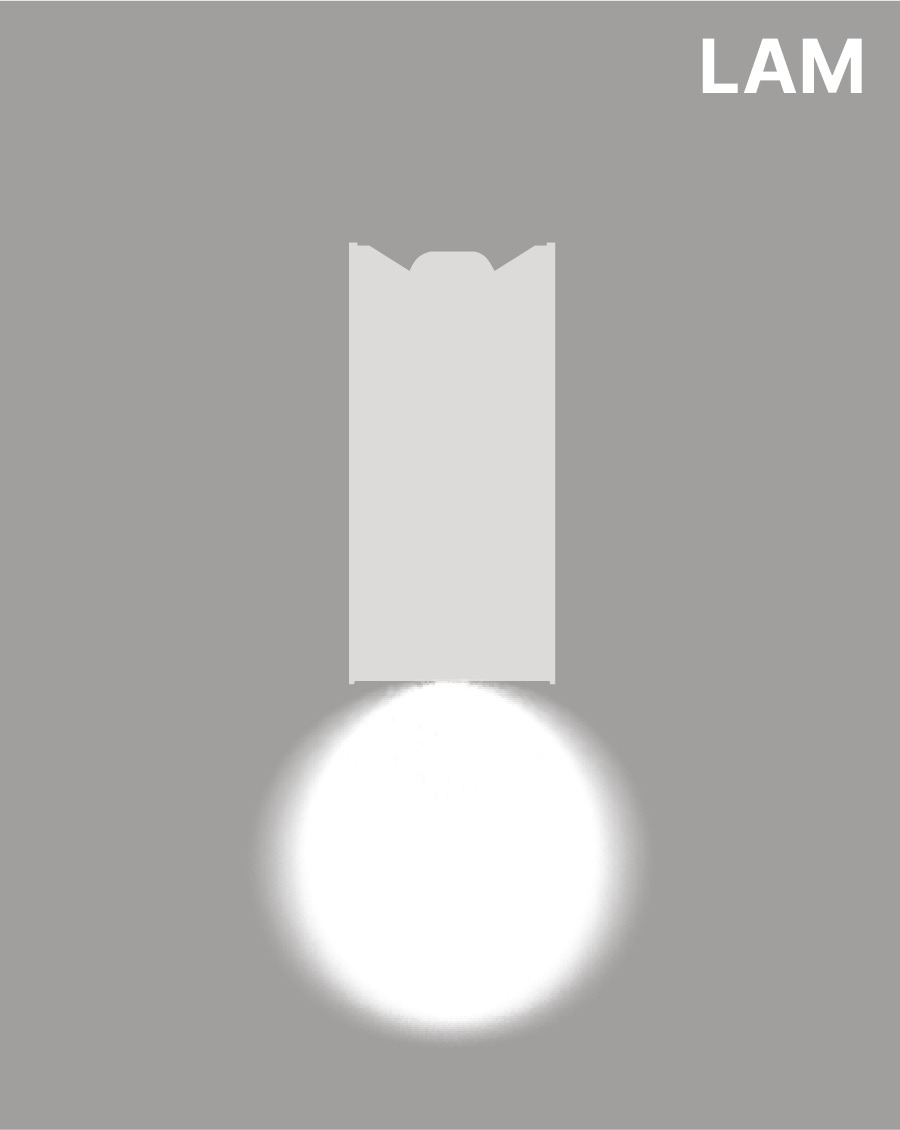

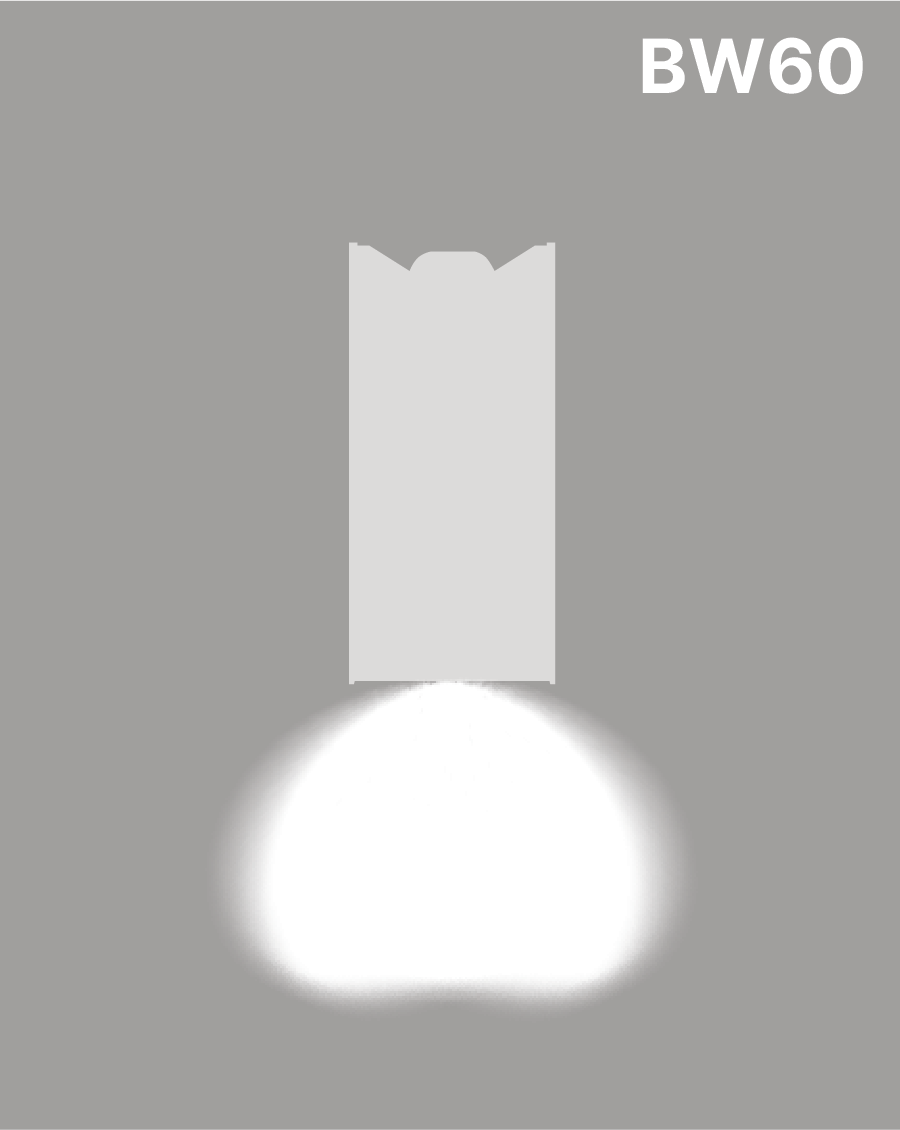

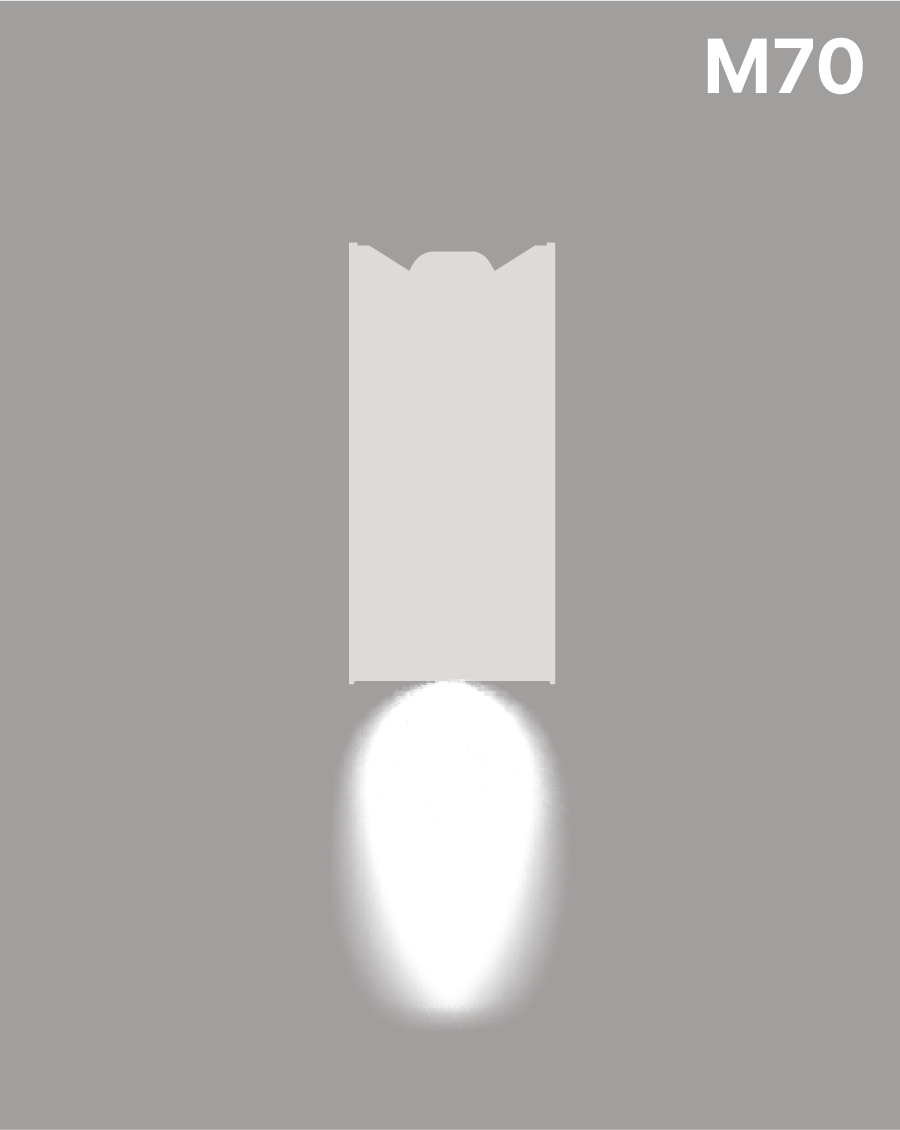

Direct

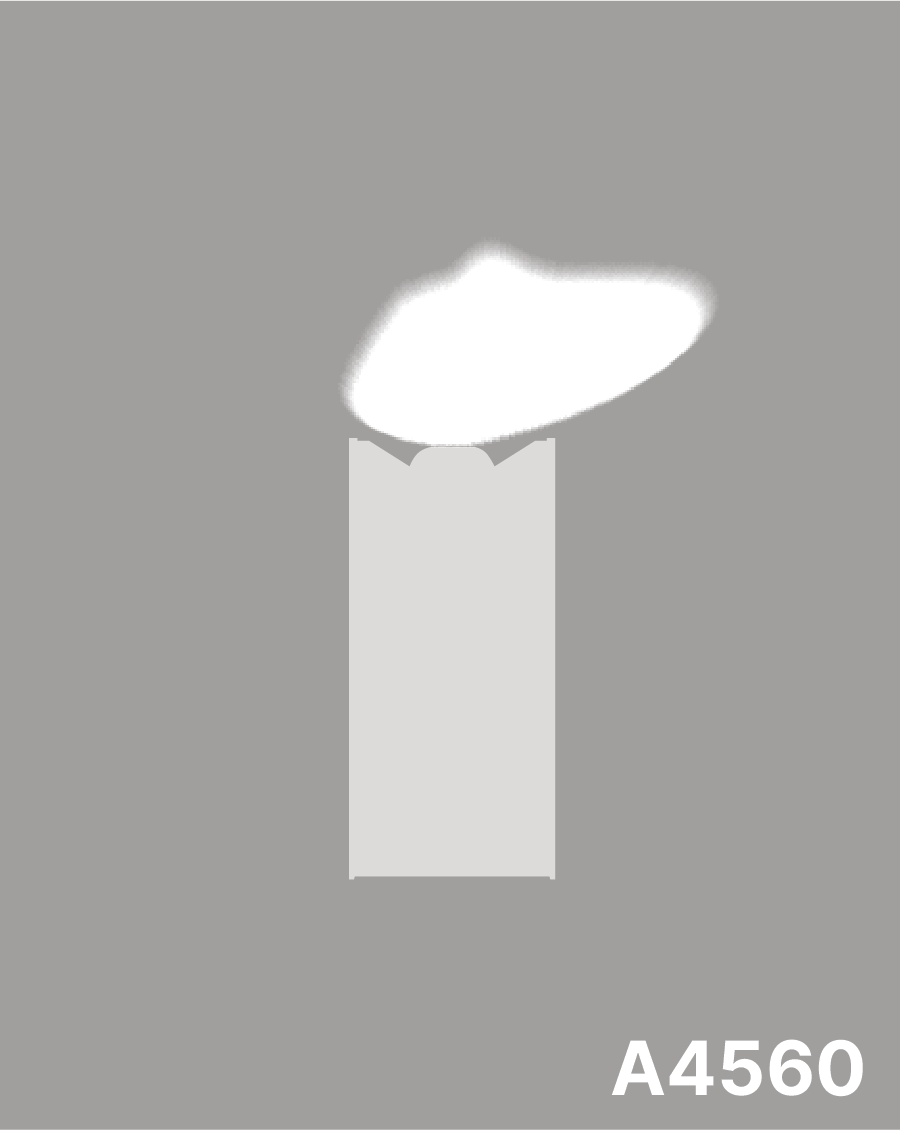

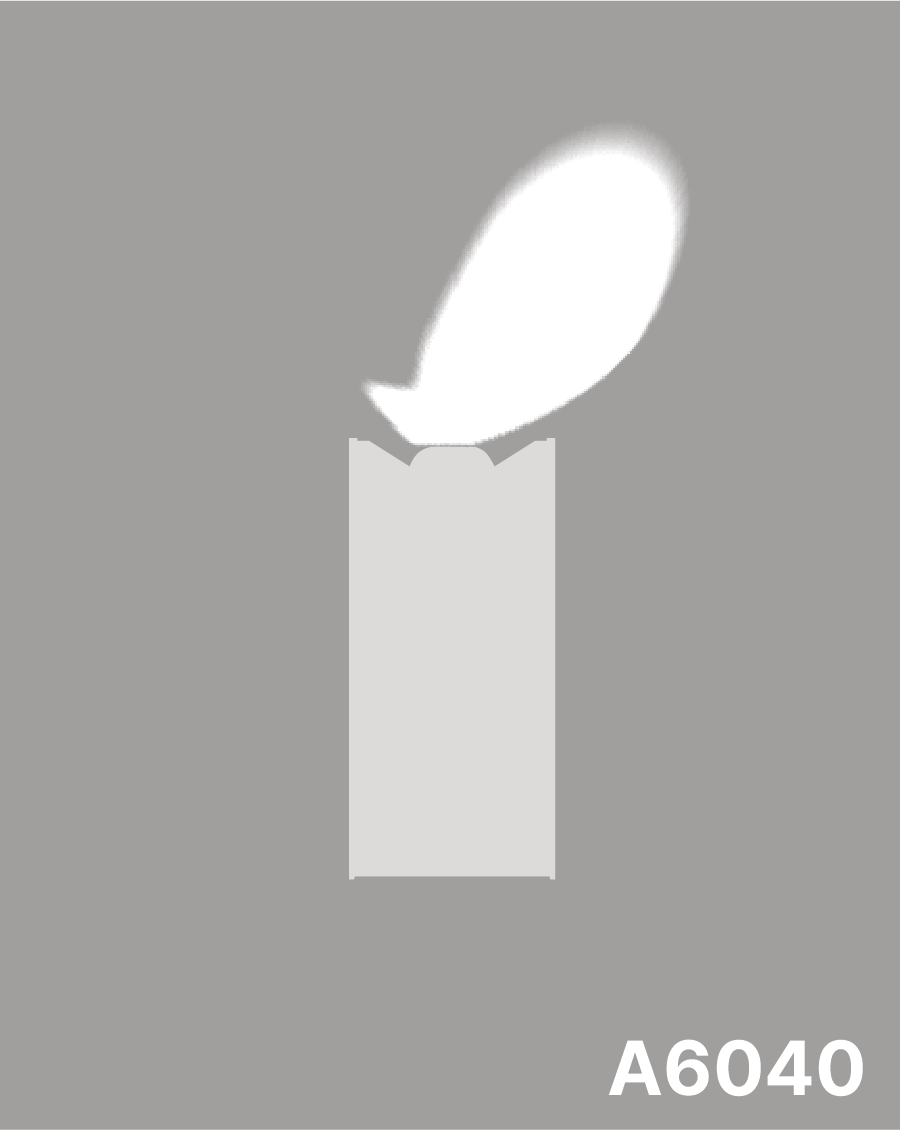

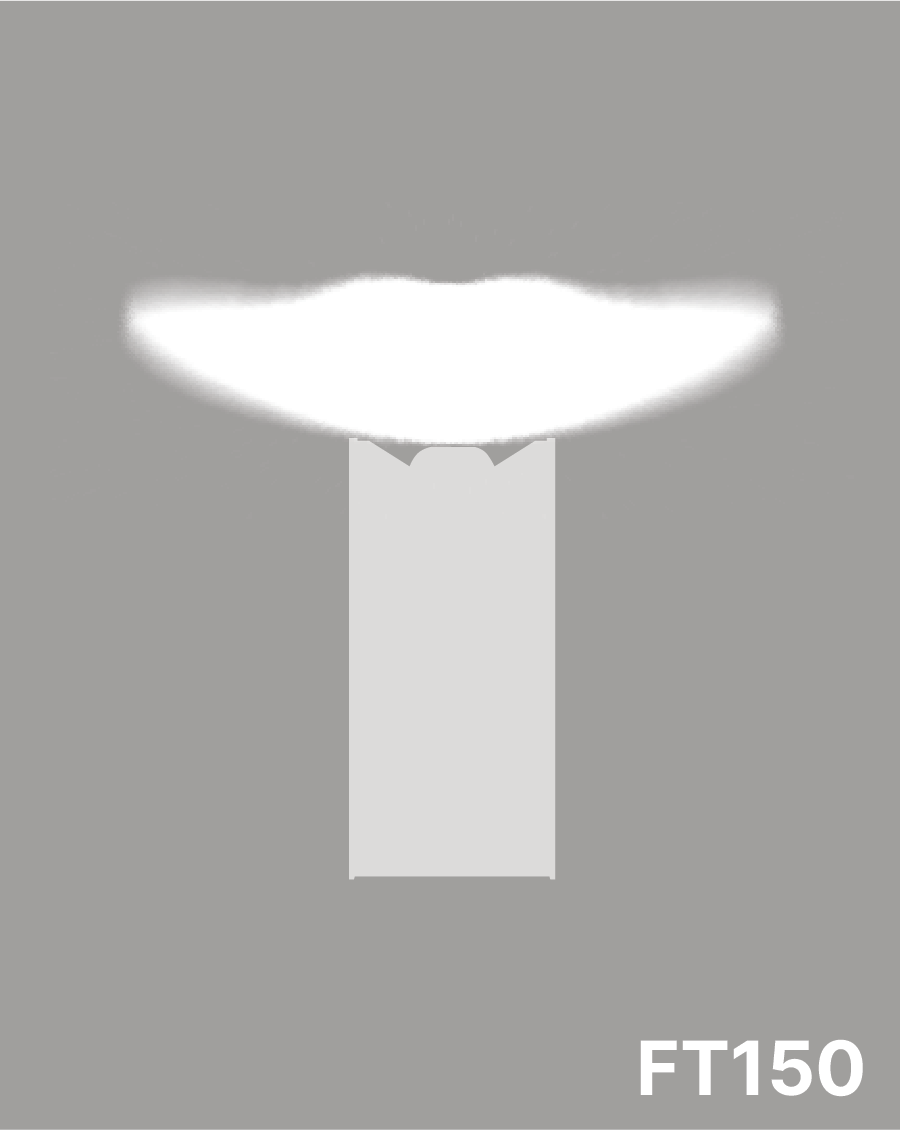

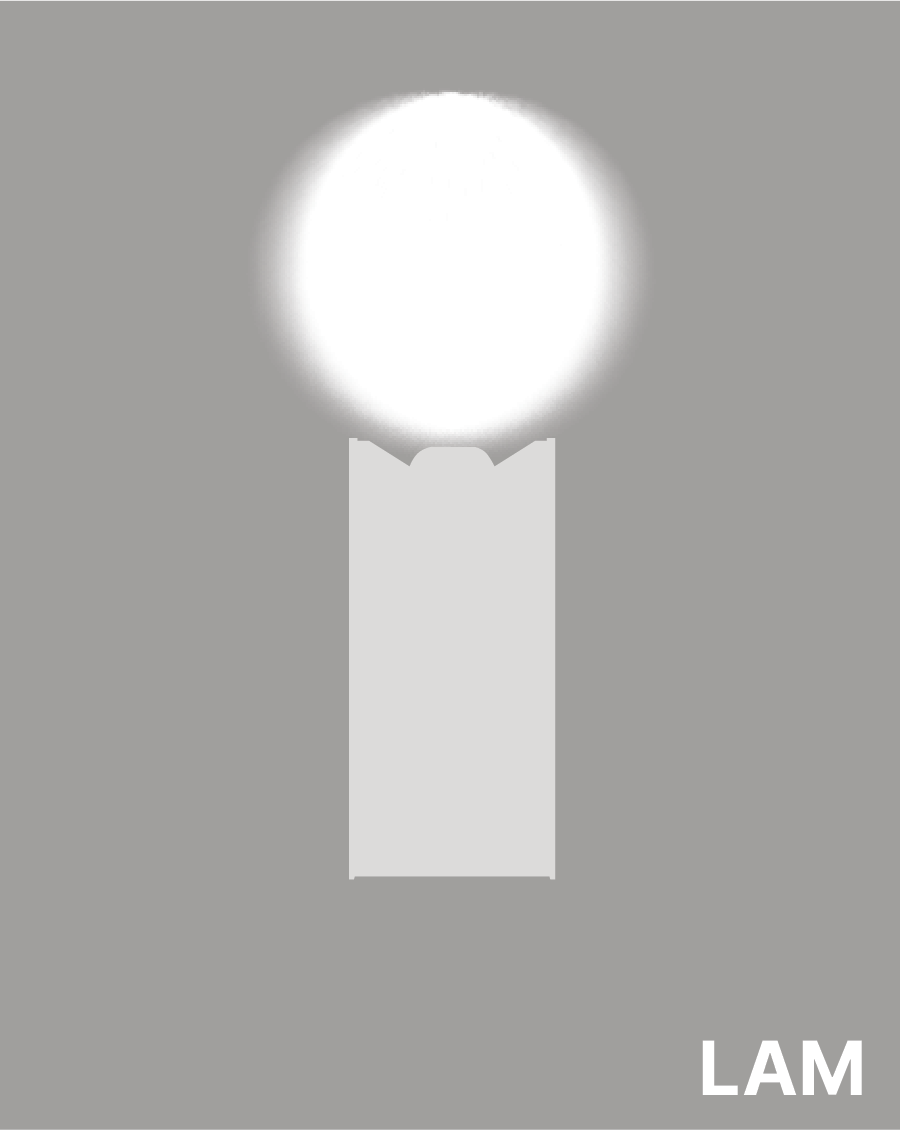

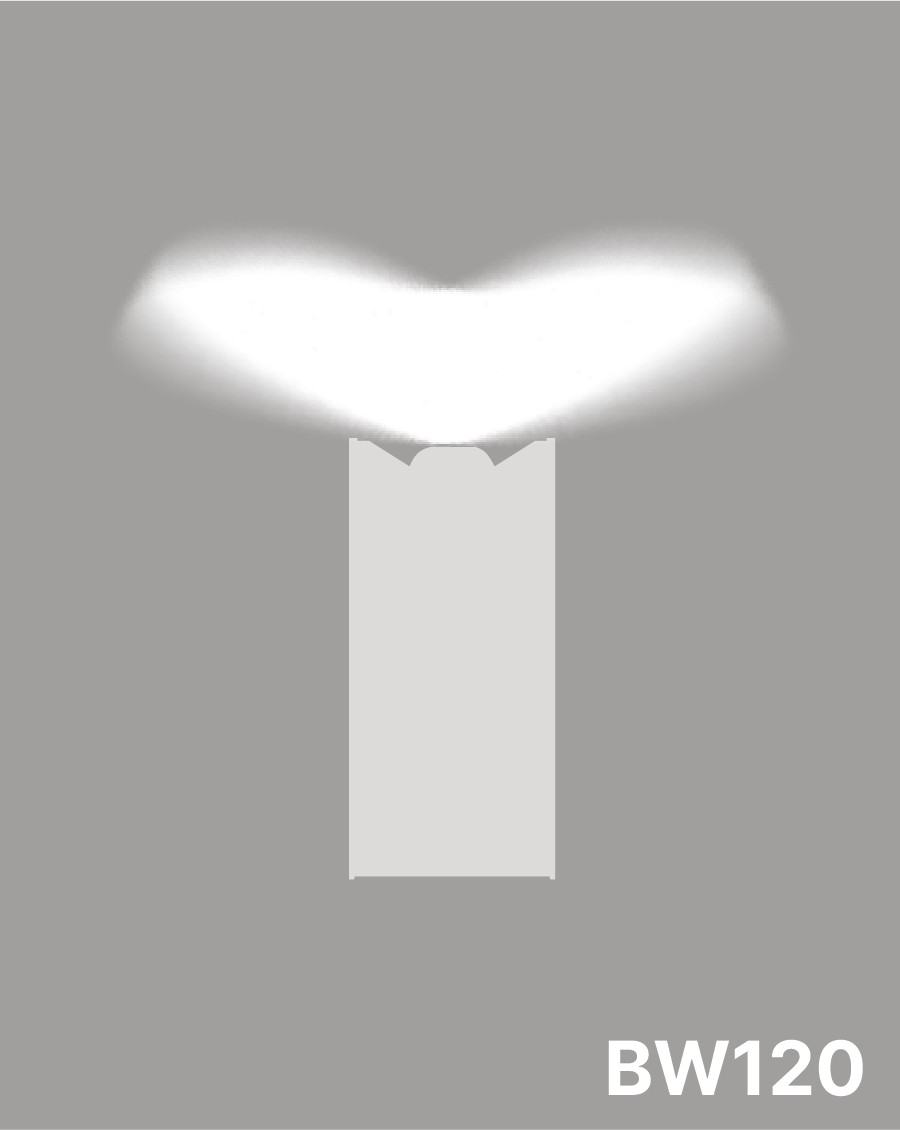

Indirect

Technical Specifications

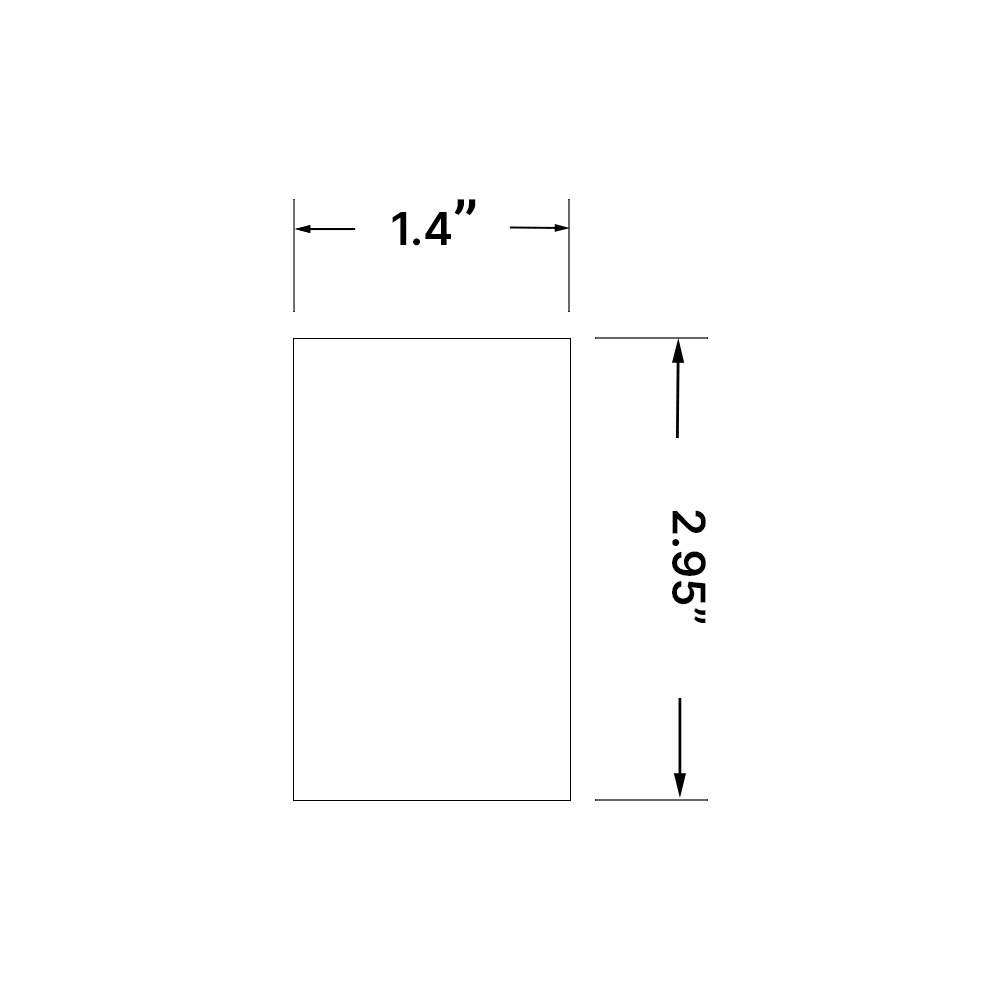

Dimensions

Mounting Style

Mounting Types

Mounting Brackets

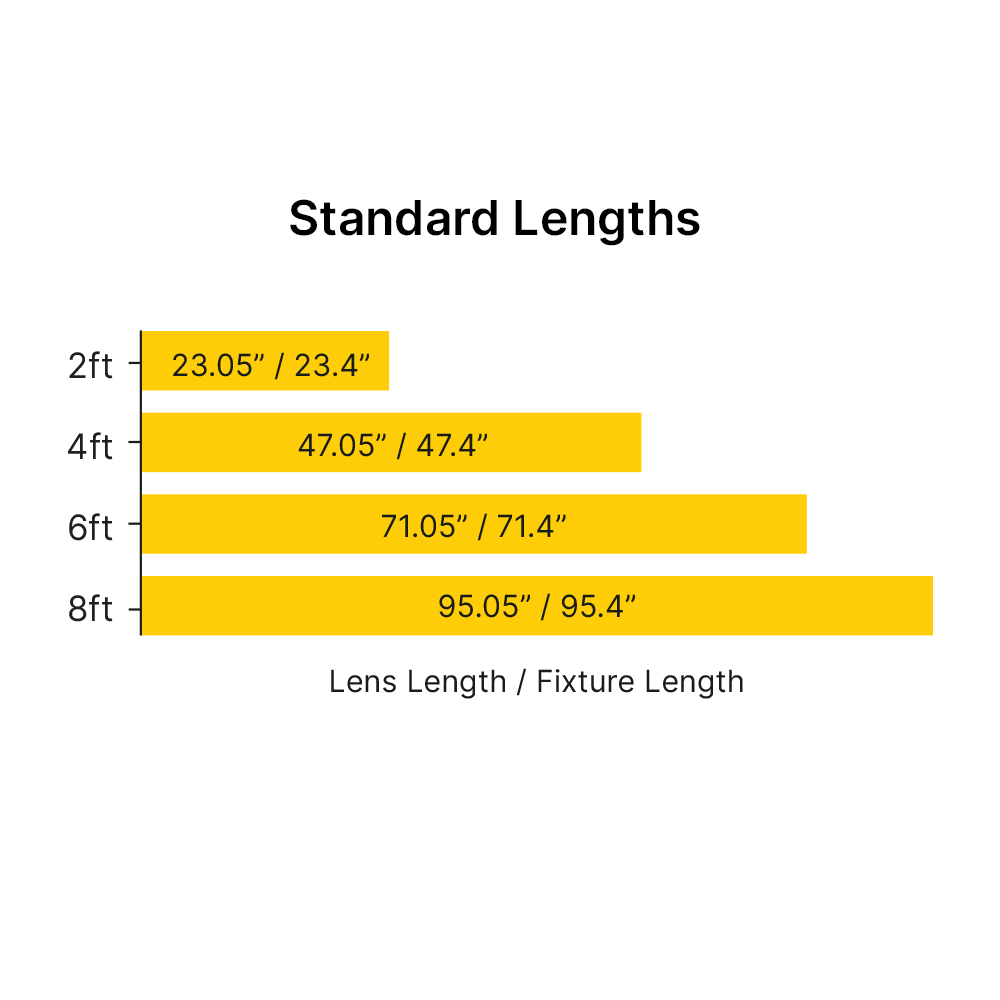

Standard Lengths

Finish

End Cap Styles

Canopy Options

Housing Material

Warranty

Sustainability

1.4″ x 2.95″

Pendant

Drywall and T-Bar

Sheet Metal

2ft, 4ft, 6ft, 8ft

Powder Coated & Anodized

Flat

Square and Round

Extruded, Recycled Aluminum

5-Year Warranty

Declare Listed and Red List Free

LED Performance

LED Choices

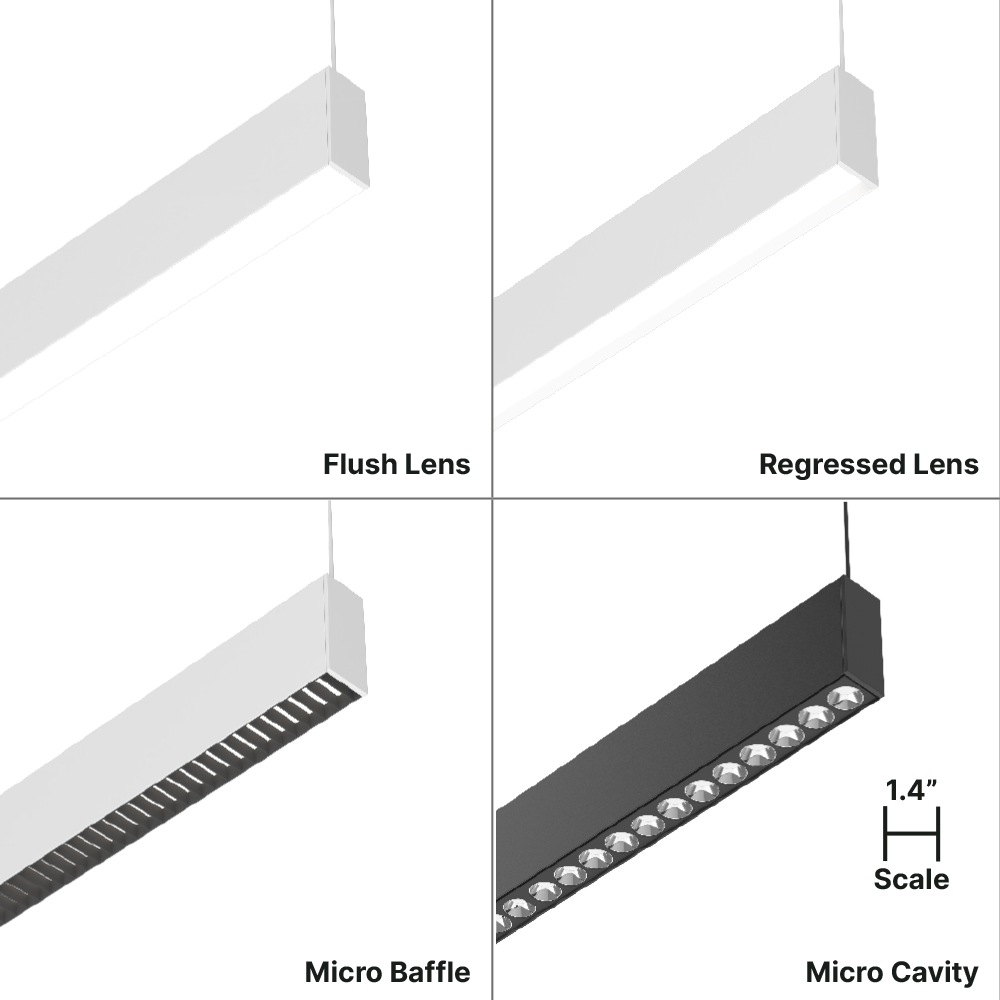

Optics Choices

CRI

CCT

Lighting Configurations

Voltage

Driver Options

Emergency Backup

Compatible Controls Options

Power Cord

Circuit

Up to 1,000 Lm/Ft, 150 Lm/W Efficacy

Static, Tunable, White, & Dim-to-Warm

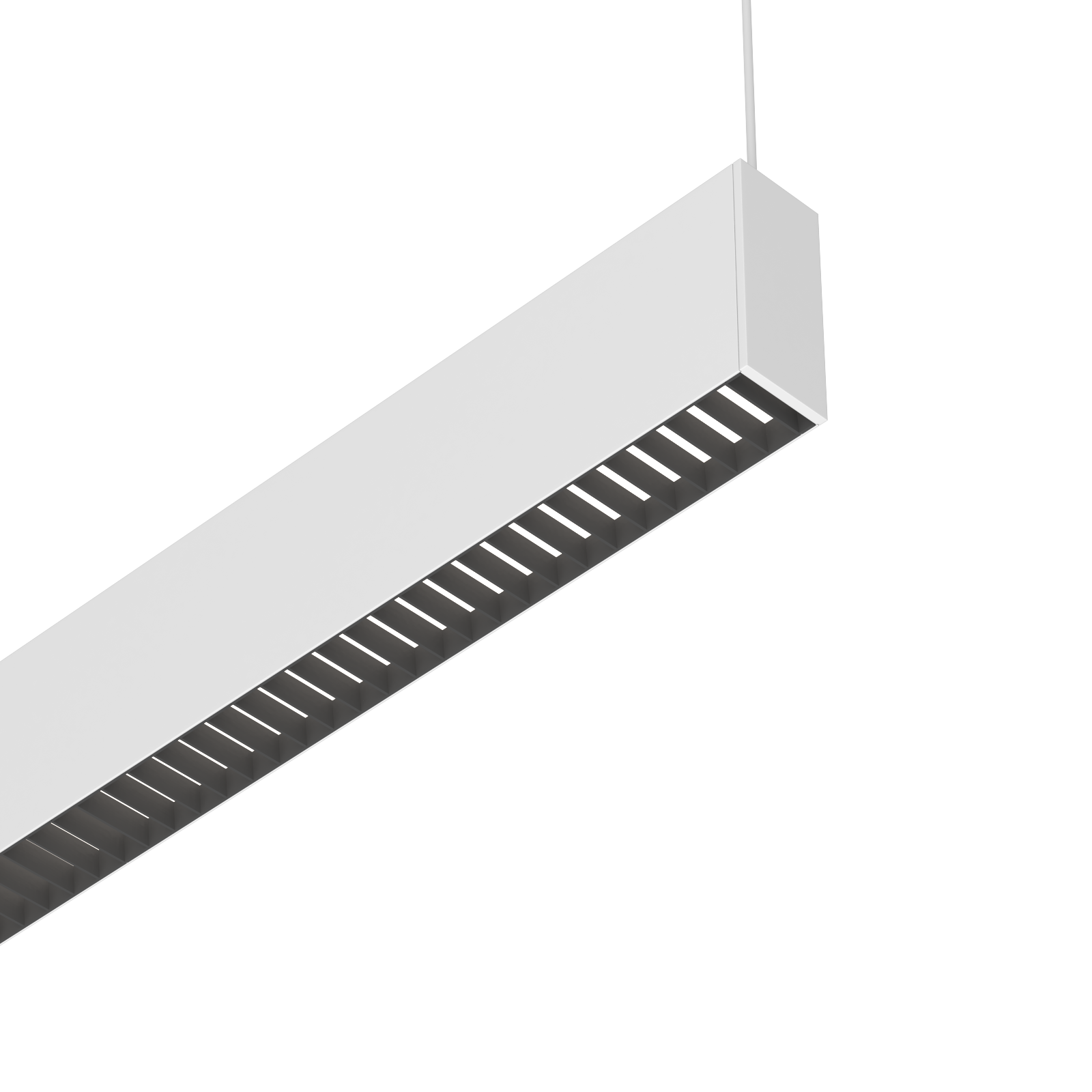

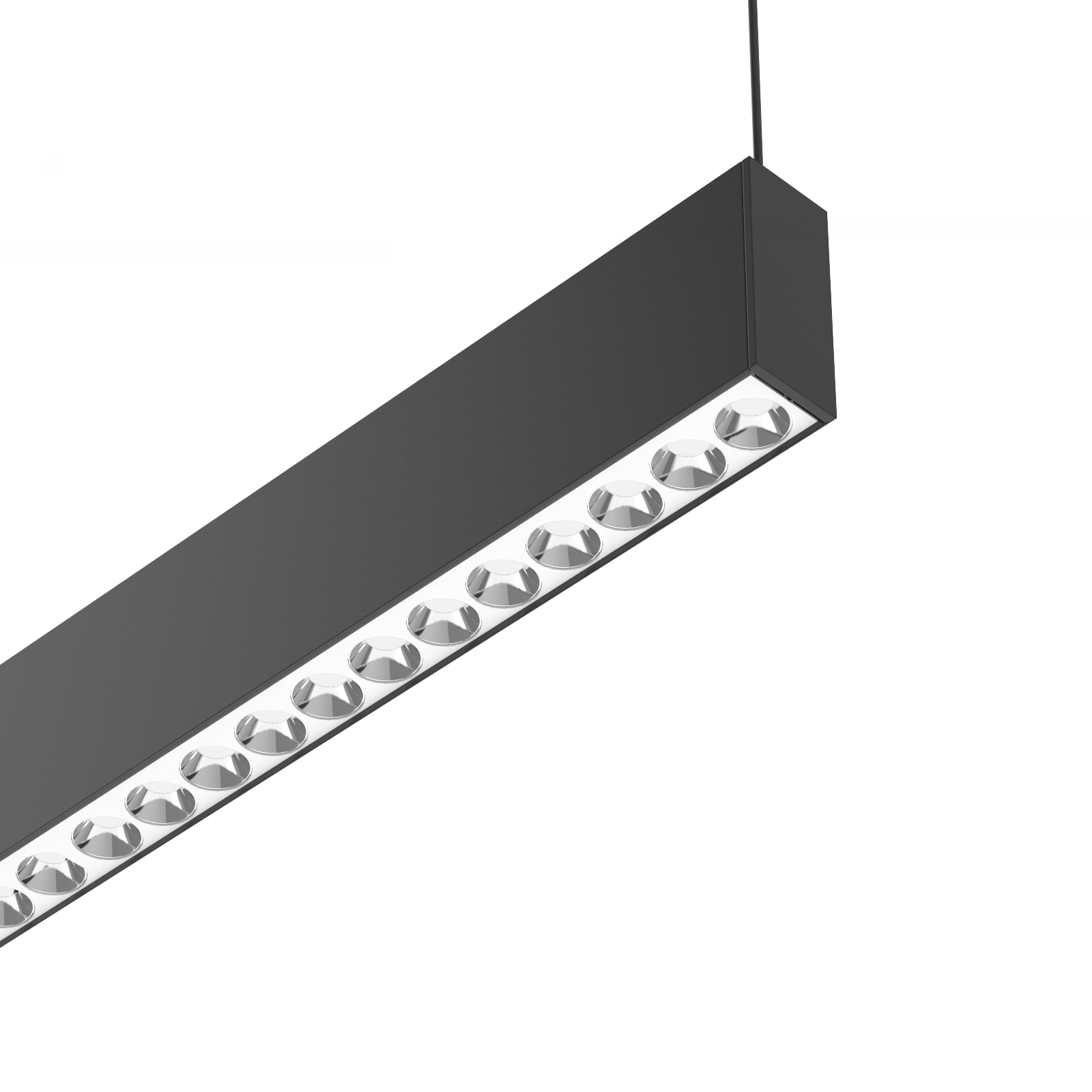

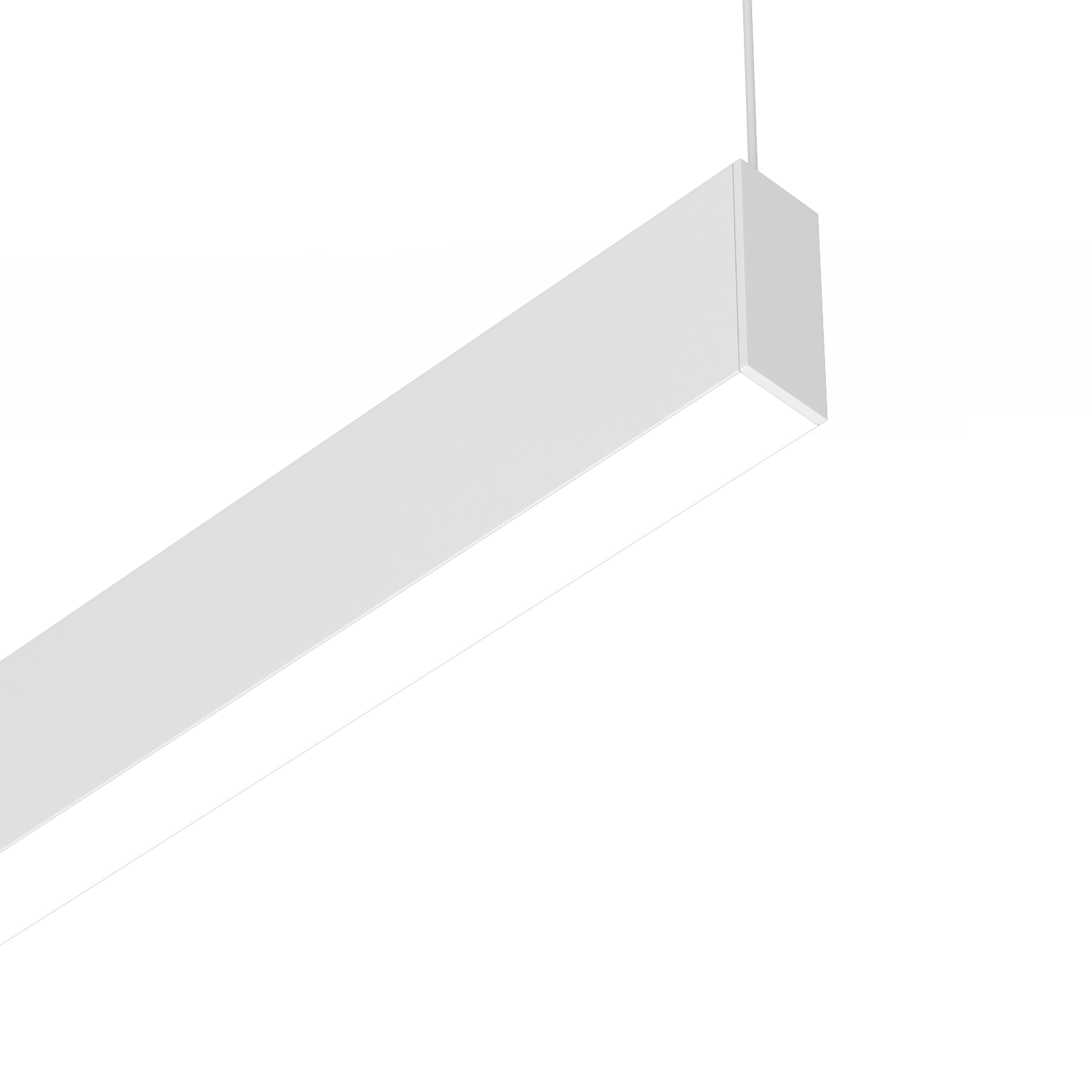

Flush, Micro Baffle, Regressed & MCO

80/90/95+

2700K to 6500K

Direct, Indirect, & Direct/Indirect

120-277 VAC and 347 VAC, 50/60 Hz

Integral

Emergency Circuit & Emergency Battery

Lutron, Casambi & Cooper

48″ and 96″

1-Circuit & Bi-Directional 2-Circuit

Sustainability

hand holding two fingers, isolated on white

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

MICRO Series Declare Listing
