GRIDSlot1.5 MCO

GRID Series

T-Bar Replacements & Ceiling Grid Lighting

Description

Product Code: GSL1.5MCO-RT

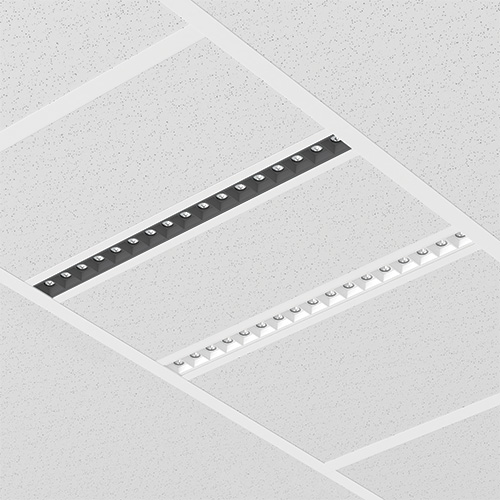

1.5″ Low-Profile Linear LED T-Bar Mount

GRIDSlot1.5 MCO takes the same capabilities and SmartBeam® controlled distributions and adapts to recessed applications. GRIDSlot1.5MCO has T-Bar and custom configuration mounting options for ceiling systems. The GRIDSlot1.5 MCO range is designed to be specification-grade with high lumen per foot, high CRI, and circadian options.

Features & Benefits

Designed for T-Bar & ceiling grid mounting
Fusion Optix® Inside with SmartBeam® technology
Choice of optics & finishes
Symmetric & asymmetric lighting distributions
Best-in-class efficiency
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi
Choice of finishes and customization options

Certifications

UL/ETL Listed
Declare listed and Red List Free
RoHS Compliant
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
BIOS Certified Partner
5-Year Factory Warranty

Files & Downloads

Spec. Guide

Tech Drawings

Installation

IES Files

Revit Files

Declare Label

SmartBeam® Choices

Standards & Certifications

Driver & Lighting Controls Options

Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.

Configuration Options

Finish	Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL #
Length	4', 6', 8', Configurable in continuous runs in 6" increments, Custom
Color Temperature	2700K, 3000K, 3500K, 4000K
Color Rendering Index	90+, 95+
Mounting Method	TBar/Grid Ceilings
Width	1.25"-2"
Beam Distribution	Asymmetric, Batwing, Double Asymmetric, Graze, Medium, Wide
Light Direction	Direct Only
Driver	Fixture Mounted, Remote
Advanced Technology	BIOS® Illuminated
Customization Option	Custom Length, Custom Shape, Acoustic Skin or Panel
